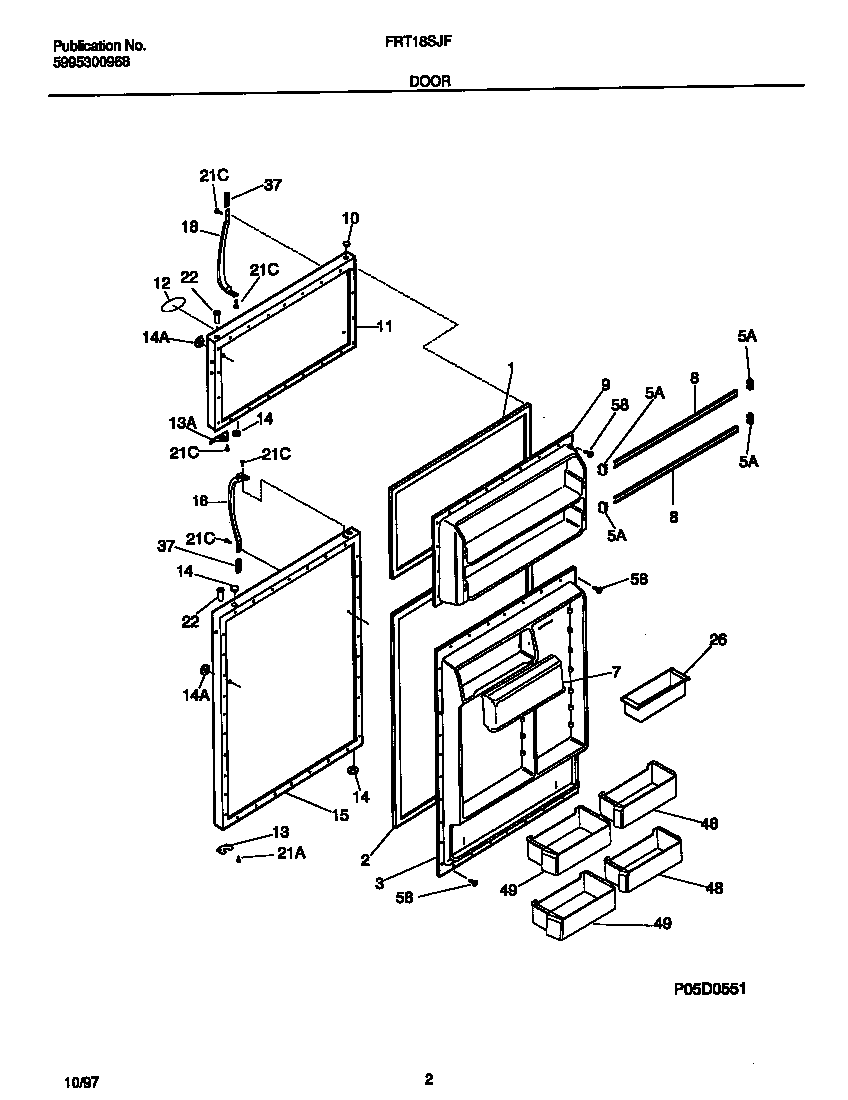

FRT18SJFD2 02 – DOOR

FRT18SJFD2 02 – DOOR

Written by

in

FRT18SJFD2 02 – DOOR

Products

PositionProduct
*17160INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360701
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308341
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 218425005
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
15WCI 5303917808
18WCI 218668002
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26WCI 3204522
37WCI 215870620
48WCI 218592310
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
