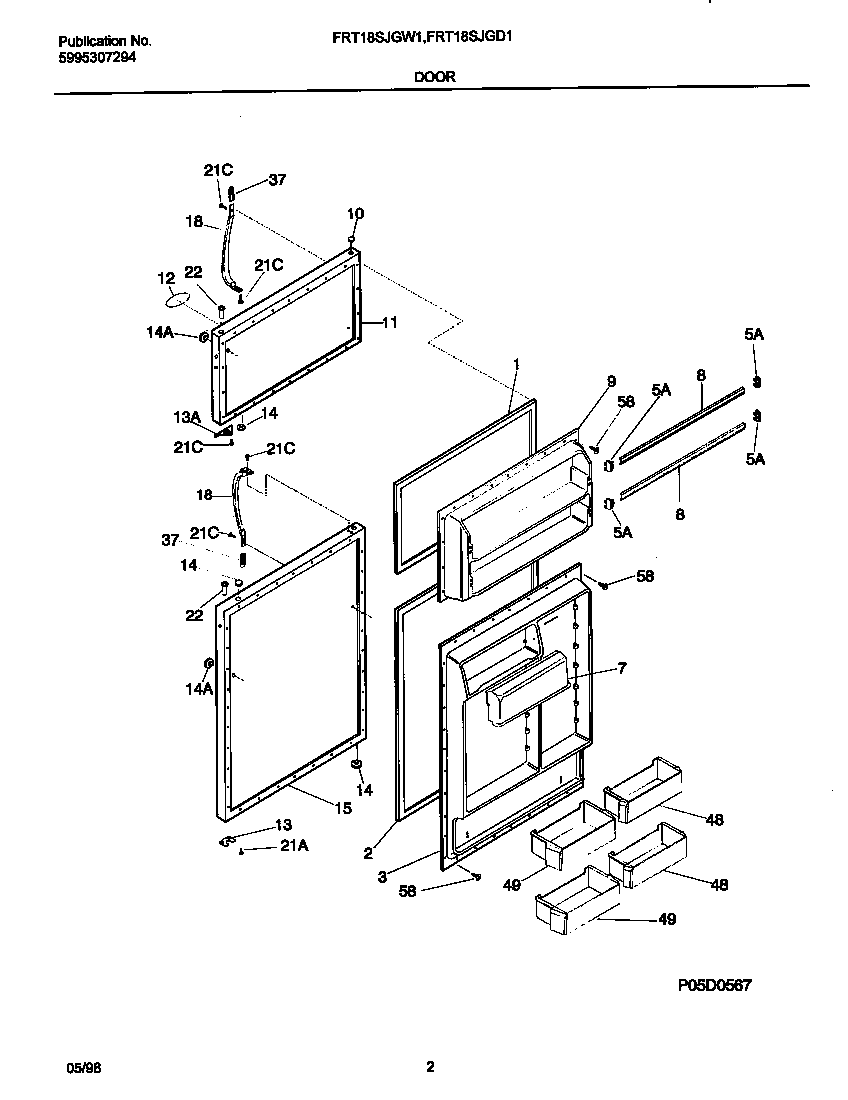

FRT18SJGW1 02 – DOORS

FRT18SJGW1 02 – DOORS

Written by

in

FRT18SJGW1 02 – DOORS

Products

PositionProduct
*00323INSULATION
*00321LABEL-NAMEPLATE,WHITE
*00322MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360701
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308341
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917805
12WCI 218364001
12WCI 218425004
13WCI 218800300
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917806
18218668001 Frigidaire Refrigerator P-1 Handle
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 215870619
48WCI 215441811
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
