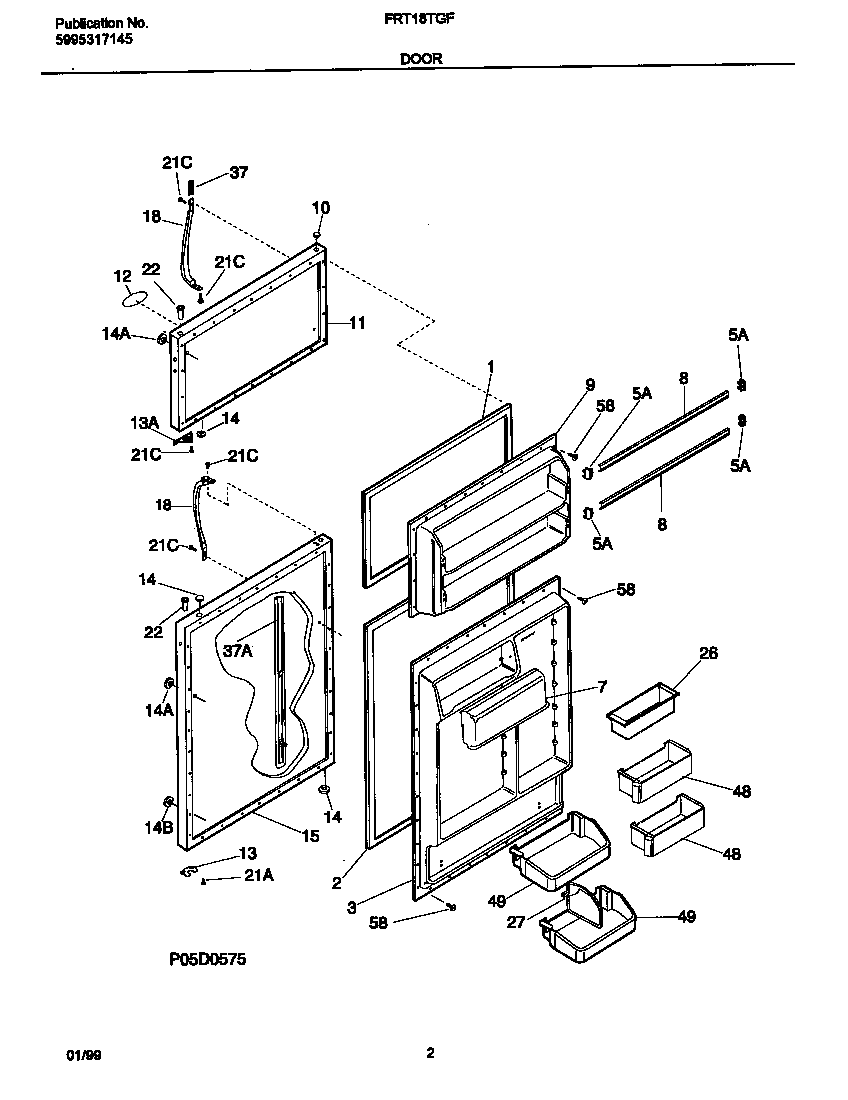

FRT18TGFD1 02 – DOOR

FRT18TGFD1 02 – DOOR

Written by

in

FRT18TGFD1 02 – DOOR

Products

PositionProduct
*31165INSULATION
*31161WCI 215008614
*31162MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*31164WCI 218364002
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360701
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
8WCI 218763627
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917796
13WCI 218800300
13WCI 218249002
14WCI 218074002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
15WCI 5303917798
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37WCI 215867090
37WCI 215870628
37WCI 215940700
48BIN-DOOR,2 LITER ,WITH TRIM
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
