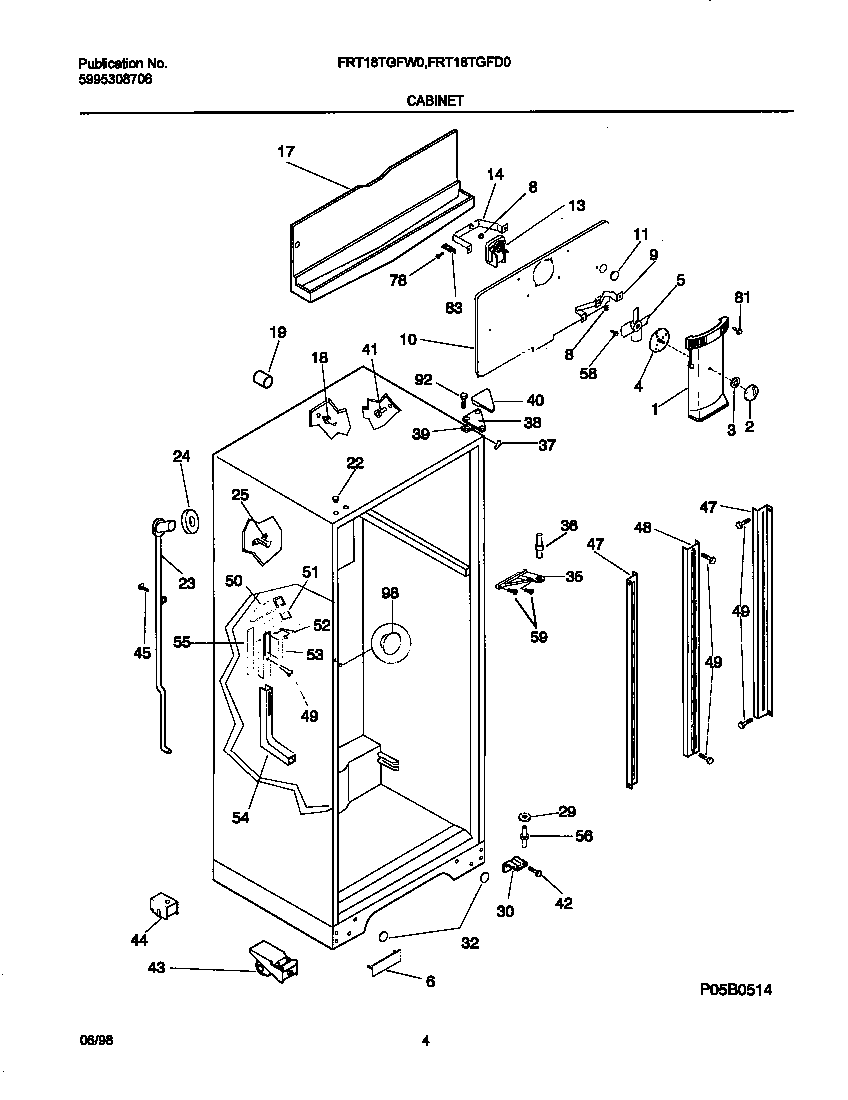

FRT18TGFW0 03 – CABINET

Products

PositionProduct
*086075304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*08606SHIM, LOWER HINGE (NI)
*08605TAPPING PLATE, LOWER HINGE, (2) (NI)
*08604NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*08609WCI 5308009760
*08611WCI 5308009790
*08608WCI 218703002
*08612WCI 5308011326
*08610BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*086145303321319 Frigidaire Refrigerator White Touch Up Paint
*08615PLUG, BUTTON, CABINET LINER (NI)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
50INSULATION-AIR DUCT, UPPER
51WCI 3203820
52CONTROL-DAMPER, MEAT KPR DUCT
53WCI 215410000
54DUCT-MEAT KEEPER, LOWER
55INSULATION-AIR DUCT, LOWER
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
