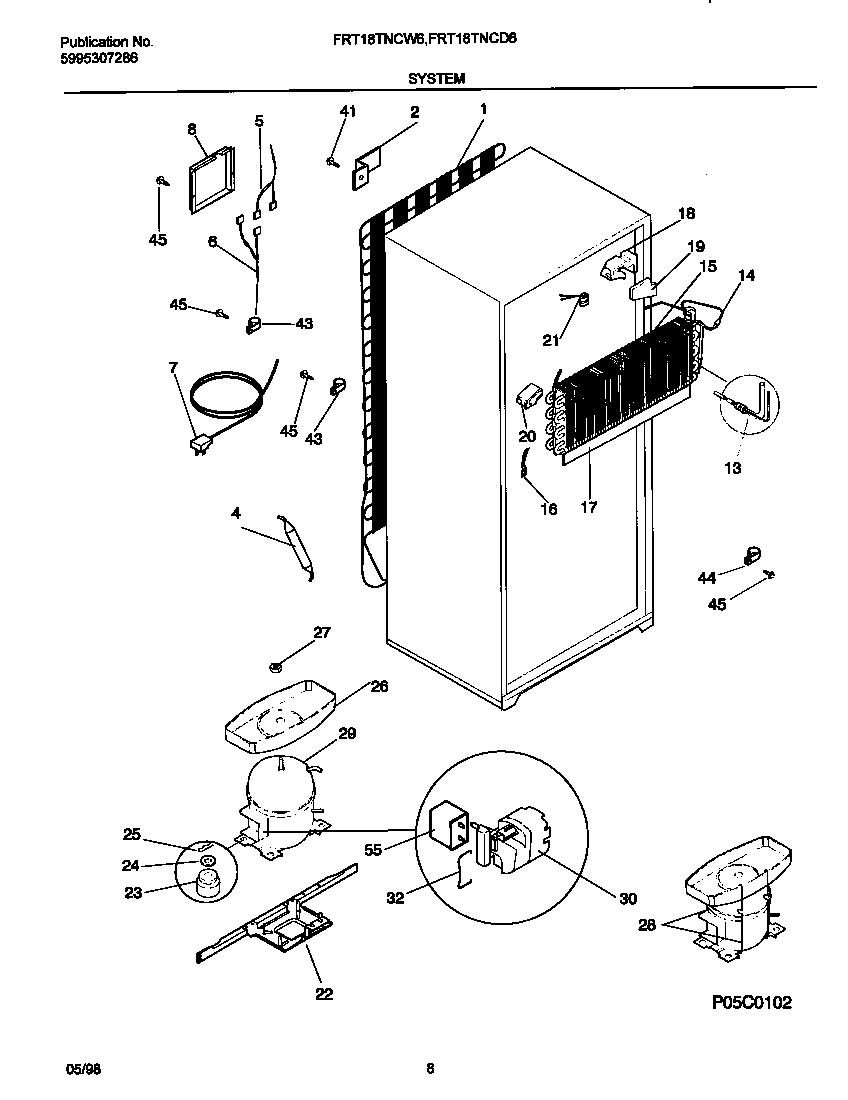

FRT18TNCW6 05 – SYSTEM

FRT18TNCW6 05 – SYSTEM

Written by

in

FRT18TNCW6 05 – SYSTEM

Products

PositionProduct
*58259WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*58266WCI 3916557
*582625303001199 Frigidaire Refrigerator Wiring Harness Clamp
*582635308000133 Frigidaire Refrigerator Clamp
*582615304500008 Frigidaire Oven Screw
*582645304455852 Frigidaire Refrigerator Screw
*58260218843801 Frigidaire Refrigerator Screw
1WCI 218173900
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429306
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
55A5304464438 Frigidaire Compressor Run Capacitor
