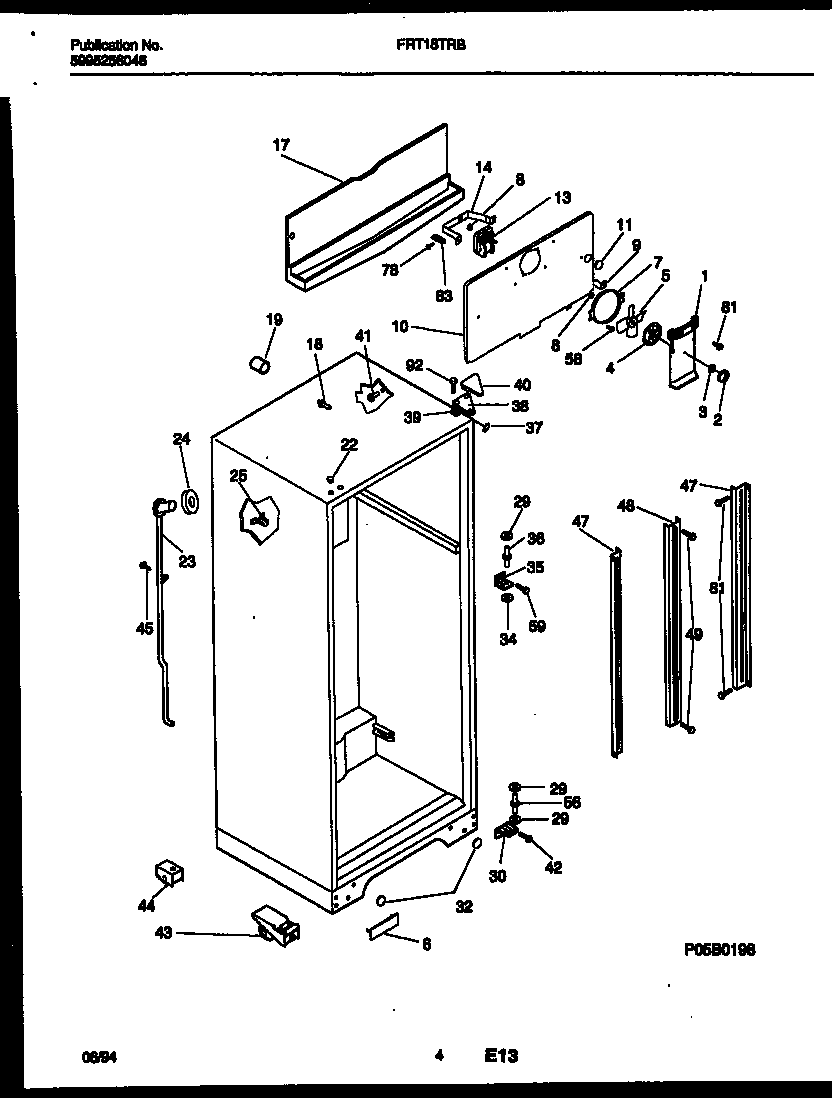

FRT18TRBW0 03 – CABINET PARTS

Products

Position	Product
*10575	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 5303301545
2	WCI 5303296360
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
11	WCI 5303917309
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206101
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43E	5304500008 Frigidaire Oven Screw
43C	WCI 5308011326
43A	WCI 5308009760
43B	WCI 5308009790
43	WCI 5300188673
43D	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
48	WCI 3916030
49	WCI 5308016568
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
