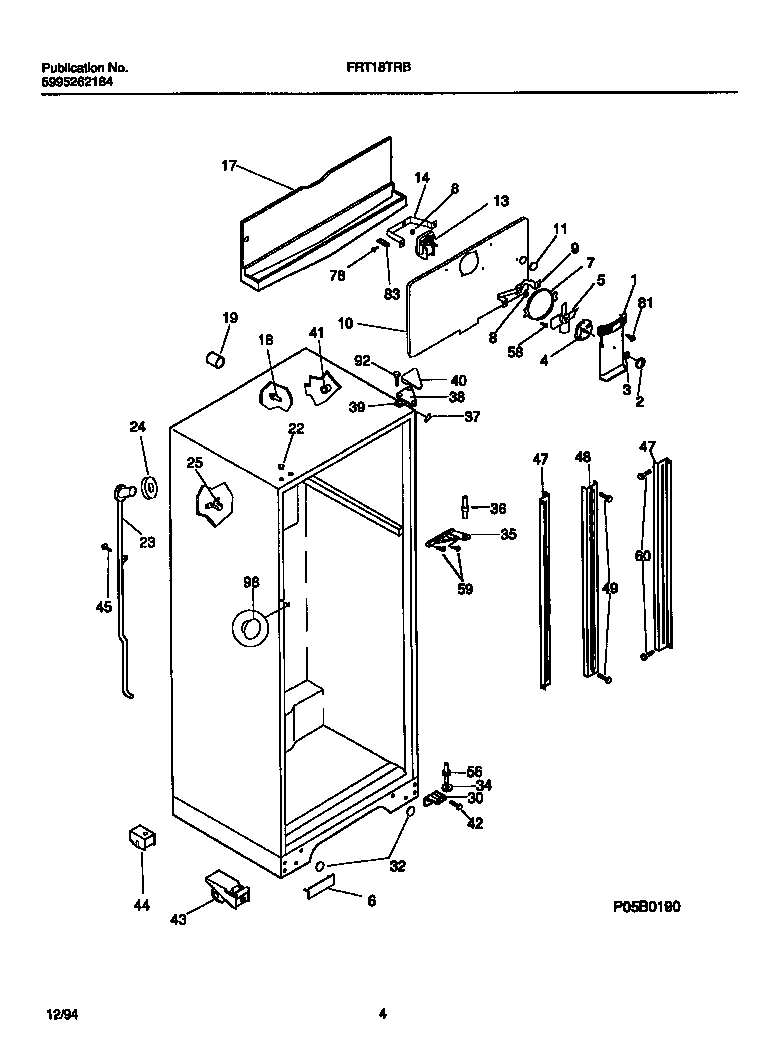

FRT18TRBW1 03 – CABINET, FAN ASSEMBLY

Products

Position	Product
1	WCI 5303301545
2	WCI 5303296360
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
30	SHIM, LOWER HINGE (NI)
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
30	WCI 3206136
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE, LIGHT GREY
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206101
41	5304509705 Frigidaire Refrigerator Grommet
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5308009760
43	WCI 5300188673
43	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43	WCI 5308009790
43	WCI 5308011326
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
48	WCI 3916030
49	SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	5304455852 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98B	5303321319 Frigidaire Refrigerator White Touch Up Paint
98	215099701 Frigidaire Refrigerator Button Plug
