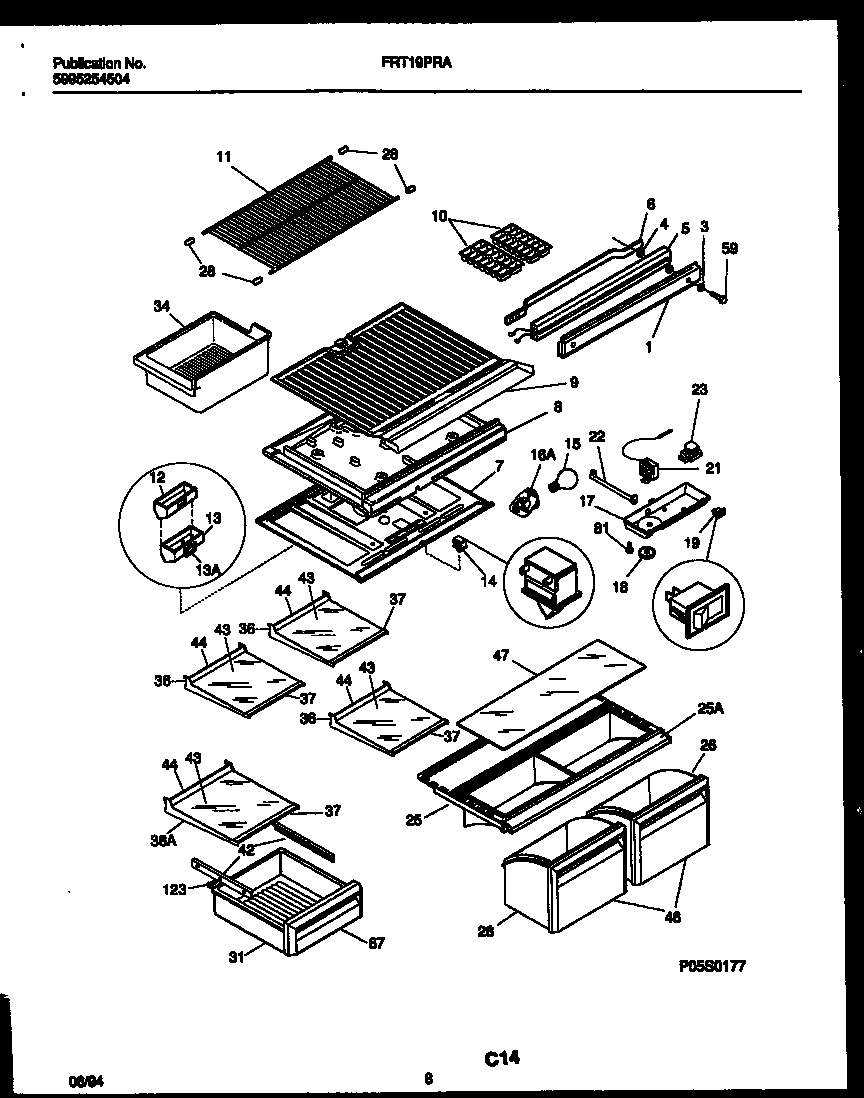

FRT19PRAW1 05 – SHELVES AND SUPPORTS

Written by

Products

Position	Product
1	WCI 5303200366
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7A	WCI 5303001380
7	TOP – REFRIGERATOR
8B	3205266 Frigidaire Refrigerator Edge Protector
8	DIVIDER-FOAM
8A	WCI 3018900
9	WCI 5303211427
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303283031
12	DEFLECTRO, AIR, W/SEAL
12A	5303001449 Frigidaire Refrigerator Seal
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 5303299980
17A	NUT, ANCHOR (NI)
18	WCI 5303299979
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
25	WCI 215363202
25A	TRIM – CRISPER COVER
26	WCI 215363301
28	END CAP-SHELF,PROTECTOR
31	MEAT PAN
34	5303212918 Frigidaire Refrigerator Cont
36A	FRAME-MEAT KPR SHLF, CANTILEVER, HALF WIDTH
36B	WCI 215339900
36	WCI 215069005
37A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
37	WCI 5303293823
42	218971302 Frigidaire Refrigerator Rh Rail
42A	218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43	WCI 5303299899
44	TRIM-SHELF, 12.59“, REAR
44A	LOCK-SHELF TRIM, REAR
46	WCI 215412103
47	WCI 5303299974
59	WCI 215097000
67	WCI 215357801
81	5304455650 Frigidaire Refrigerator Screw
123	WCI 08014528
