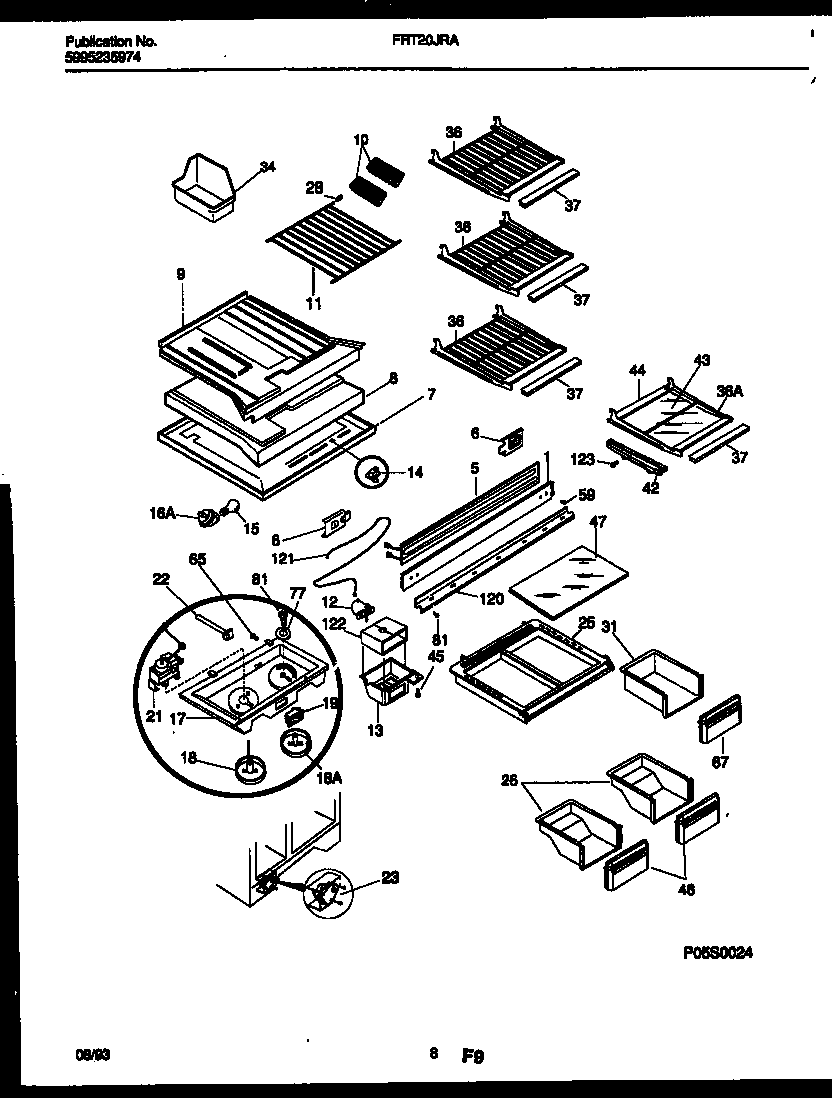

FRT20JRAD0 05 – SHELVES AND SUPPORTS

FRT20JRAD0 05 – SHELVES AND SUPPORTS

Written by

in

FRT20JRAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002201
5WCI 215096800
6WCI 215096700
7WCI 215055801
7WCI 5303001380
83205266 Frigidaire Refrigerator Edge Protector
8WCI 215062700
9WCI 215058300
10WCI 01121808
11WCI 5303297948
12WASHER-AIR DEFLECTR
12SPACER-AIR DEFLECTR
12WCI 215132300
13NUT, ANCHOR (NI)
13WCI 215132600
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 215280700
17WCI 5303292409
18WCI 5303292411
18WCI 5303292410
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303001260
21WCI 5303292452
22HOUSING, CONTRL CAP TUBE
23SHIELD-DEFROST TIMR,BTM
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23COVER-DEFROST TIMER, TOP
25WCI 215296501
26WCI 215298001
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36AWCI 215069016
36WCI 5303298059
37TRIM-HALF SHELF, FRONT, (2)
37RETAINER-GLASS, (3) (NON-ILLUSTRATED)
42WCI 215002301
42HANGER-PAN/TRAY, RH
43GLASS-SHELF,HALF SHELF,(2)
44TRIM-HALF SHELF, SNAP-ON, REAR, (2)
44LOCK-SHELF TRIM, REAR
455304455651 Frigidaire Refrigerator Screw
46WCI 5303292657
47INSERT-PAN COVER, GLASS
59WCI 215097000
65WCI 5303274946
67WCI 5303292662
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 215097101
121NUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 215132501
123WCI 08014528
84508WCI 215339900
