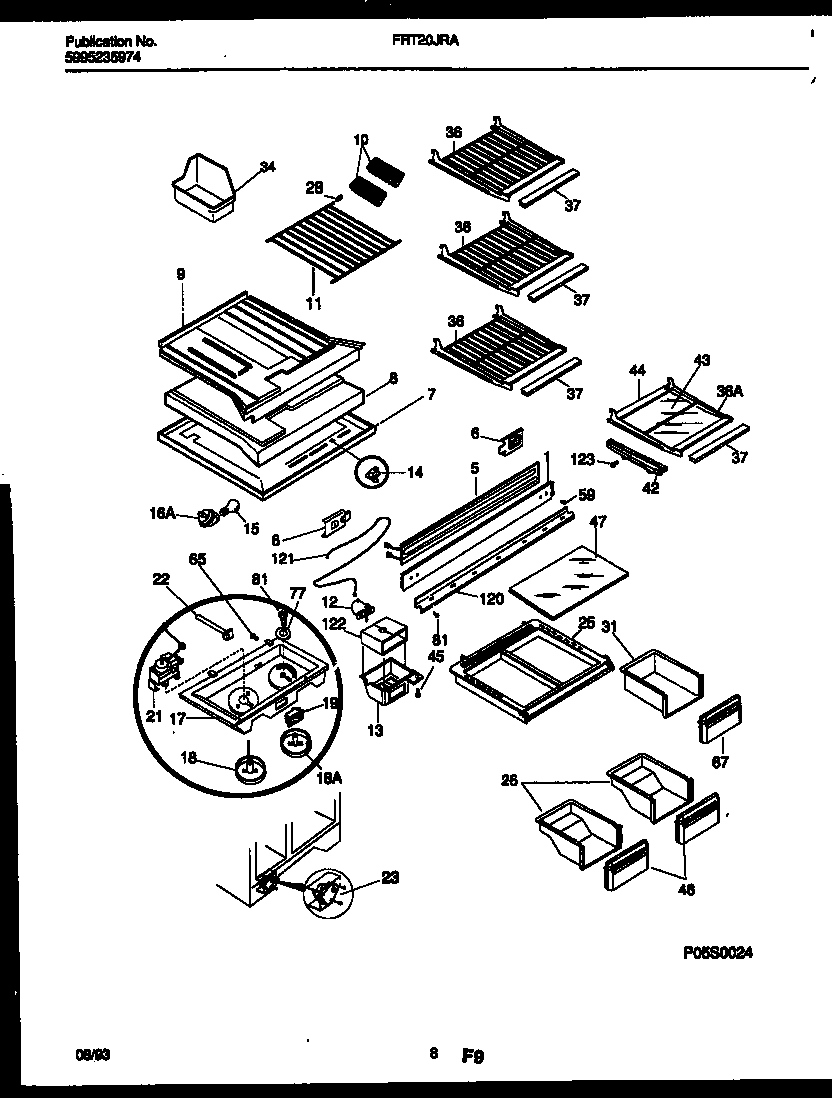

FRT20JRAW0 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 215002201
5	WCI 215096800
6	WCI 215096700
7	WCI 215055801
7	WCI 5303001380
8	3205266 Frigidaire Refrigerator Edge Protector
8	WCI 215062700
9	WCI 215058300
10	WCI 01121808
11	WCI 5303297948
12	WASHER-AIR DEFLECTR
12	SPACER-AIR DEFLECTR
12	WCI 215132300
13	NUT, ANCHOR (NI)
13	WCI 215132600
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 215280700
17	WCI 5303292409
18	WCI 5303292411
18	WCI 5303292410
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303001260
21	WCI 5303292452
22	HOUSING, CONTRL CAP TUBE
23	SHIELD-DEFROST TIMR,BTM
23	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23	COVER-DEFROST TIMER, TOP
25	WCI 215296501
26	WCI 215298001
28	END CAP-SHELF, PROTECTOR
31	WCI 5303292388
34	5303212918 Frigidaire Refrigerator Cont
36A	WCI 215069016
36	WCI 5303298059
37	TRIM-HALF SHELF, FRONT, (2)
37	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
42	WCI 215002301
42	HANGER-PAN/TRAY, RH
43	GLASS-SHELF,HALF SHELF,(2)
44	TRIM-HALF SHELF, SNAP-ON, REAR, (2)
44	LOCK-SHELF TRIM, REAR
45	5304455651 Frigidaire Refrigerator Screw
46	WCI 5303292657
47	INSERT-PAN COVER, GLASS
59	WCI 215097000
65	WCI 5303274946
67	WCI 5303292662
77	WASHER-NYLON,3/16 X 5/8 OD
81	5304455650 Frigidaire Refrigerator Screw
120	WCI 215097101
121	NUT,PUSH-ON ,DAMPER CABLE
121	WCI 215364001
122	WCI 215132501
123	WCI 08014528
84508	WCI 215339900
