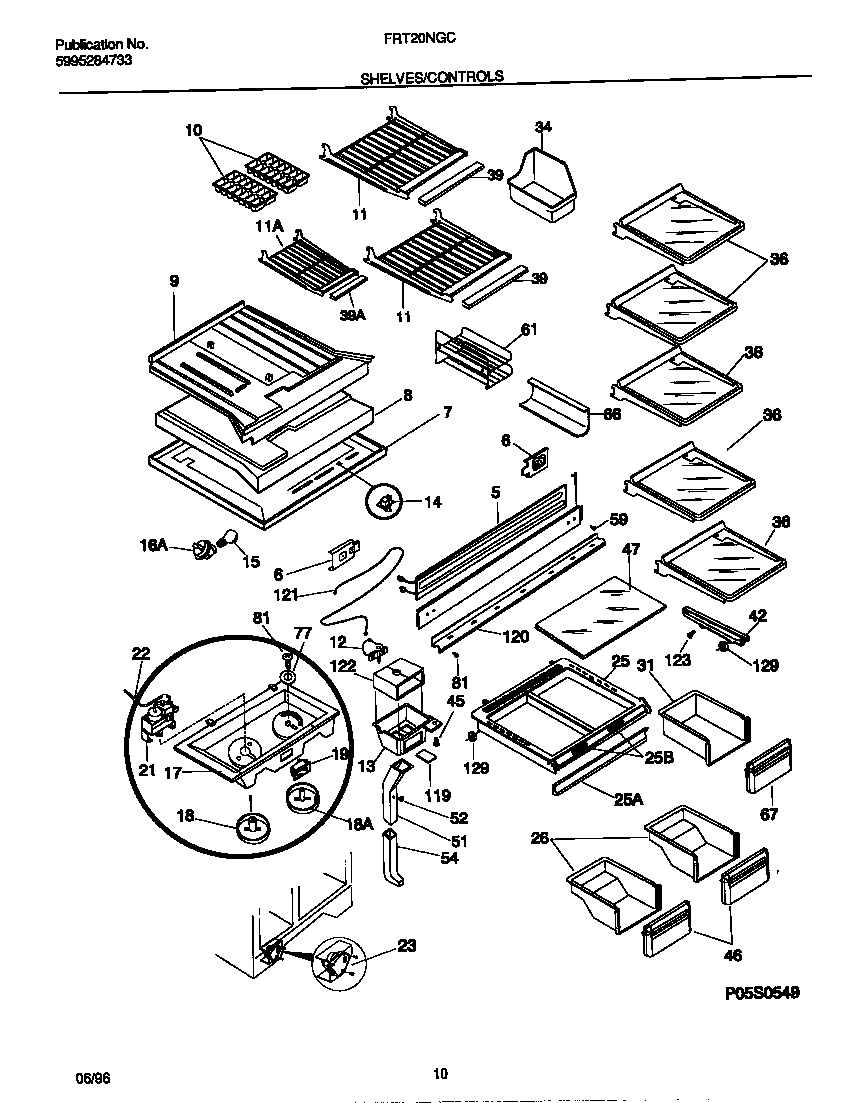

FRT20NGCB2 04 – SHELVES/CONTROLS

FRT20NGCB2 04 – SHELVES/CONTROLS

Written by

in

FRT20NGCB2 04 – SHELVES/CONTROLS

Products

PositionProduct
*15769WCI 215339900
*15768WCI 215848000
*15767WCI 218660800
*15765WCI 215339100
*15766WCI 215359900
1WCI 5303299280
5WCI 215634100
6WCI 218279800
7WCI 218646701
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292383
11WCI 5303292384
12BWASHER-AIR DEFLECTR
12AWCI 218634902
12CWCI 218634800
13AWCI 218629900
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 215932905
17BNUT-ANCHOR
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303319419
22WCI 218660701
23B5304455649 Frigidaire Refrigerator Screw
23DSHIELD-DEFROST TIMR,BTM
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
23CCOVER-DEFROST TIMER, TOP
25WCI 5303308349
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216635
26WCI 215298001
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 215217539
39WCI 5303284480
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390565
51AWCI 215132809
51BWCI 215133200
51CWCI 215133300
52BWCI 215133000
52AWCI 215132901
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61AWCI 218620901
61BGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122BWCI 218561204
122AWCI 218561202
123215005101 Frigidaire Refrigerator Screw
129BWCI 5303299153
129AWCI 5303299152
