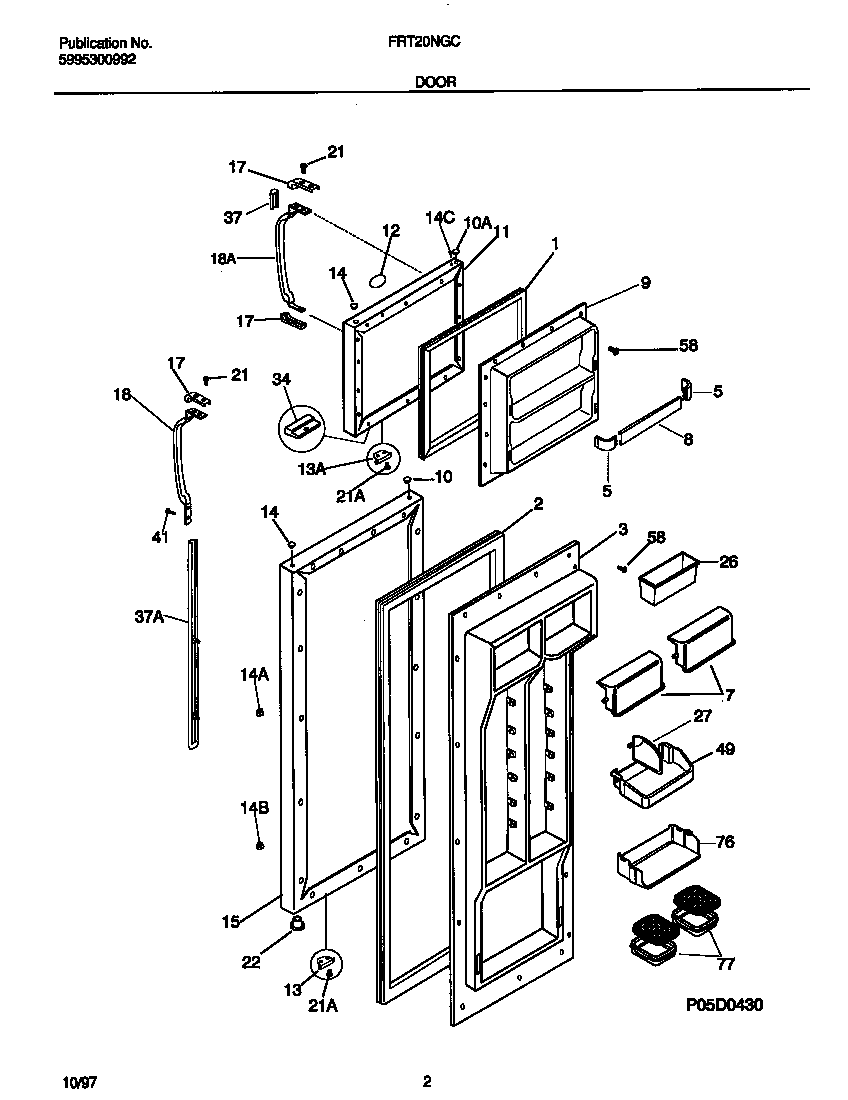

FRT20NGCB6 02 – DOOR

Written by

Products

Position	Product
*55120	INSULATION
1	WCI 215608925
2	WCI 218730613
3	WCI 215434701
5A	218809801 Frigidaire Refrigerator Support-Door Rack
5B	218809701 Frigidaire Refrigerator Door Rack Support
7	WCI 5303308347
8	215516220 Frigidaire Refrigerator Door Rack
9	WCI 215278301
10	WCI 5303299154
10	WCI 218696503
11	WCI 5303917990
12	WCI 215008606
12	WCI 218364006
12	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13	WCI 5303289522
13	WCI 215030018
14	WCI 218696603
14	WCI 218074003
14	240494003 Frigidaire Refrigerator Plug-Button
15	WCI 5303917987
17	WCI 218696405
18	WCI 215981320
18	WCI 215983220
21	SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21	218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22	WCI 5303289320
26	WCI 3204522
27	SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34	WCI 218783202
37	WCI 218549832
37	WCI 218811603
37C	WCI 218676003
37B	WCI 215940700
37A	WCI 215782300
41	218843801 Frigidaire Refrigerator Screw
49	215441502 Frigidaire Refrigerator Door Bin
58	Screw,No.10 pan hd ,8-18 x .5
76	WCI 218423900
77	WCI 218423502
