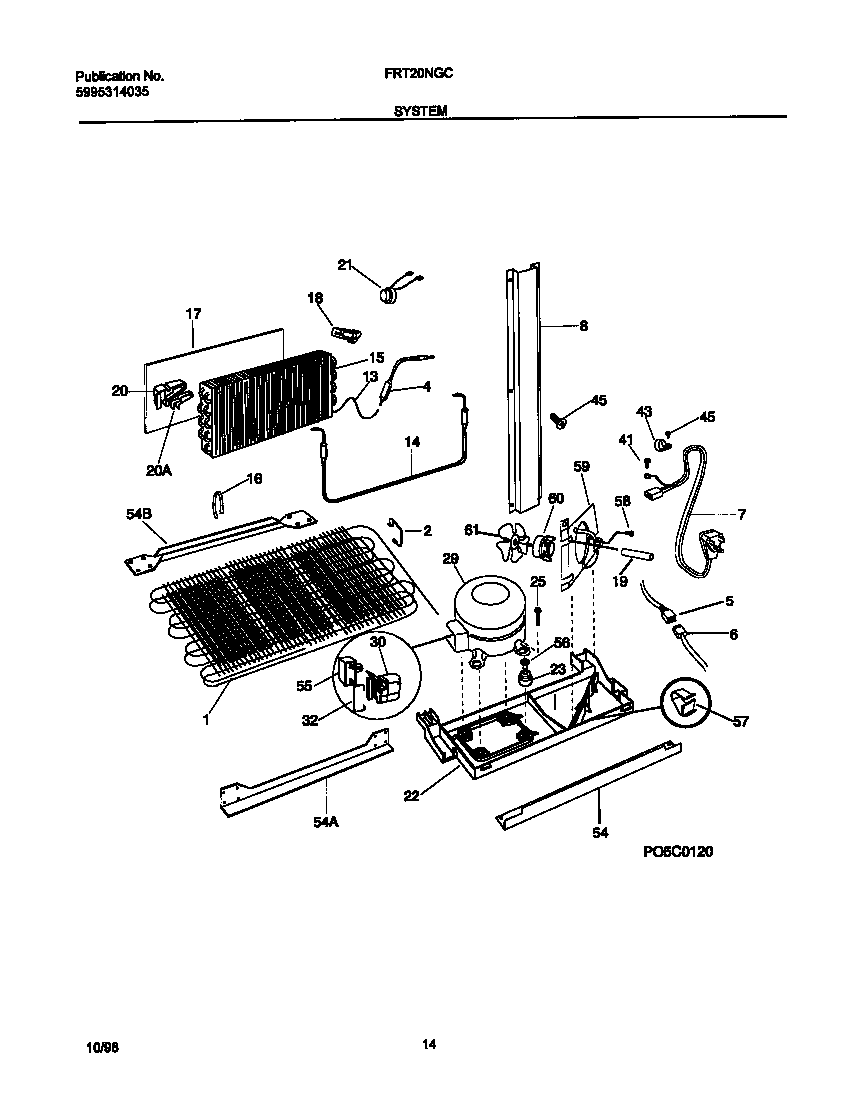

FRT20NGCB9 05 – SYSTEM

Products

Position	Product
*04277	5308000133 Frigidaire Refrigerator Clamp
*04282	HOT TUBE REPAIR KIT, SERVICE
*04276	5304500008 Frigidaire Oven Screw
*04279	SEAL-FOAM,COND FAN SHROUD
*04275	SPACER TUBE
*04281	WCI 215004800
*04280	WCI 215004700
1	WCI 218787700
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218671800
6	WCI 215501601
7	WCI 215459201
8	WCI 218803400
13	WCI 215208801
14	5317842502 Frigidaire Defrost Heater
15	WCI 5303321220
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	WCI 218631200
20	WCI 5303292405
20	WCI 5303292406
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721101
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45B	5304455651 Frigidaire Refrigerator Screw
45A	SCREW,HEX HD SER WSHR ,8-18 X 0.375
54	WCI 5303289027
54	WCI 5303289292
54	WCI 5303289311
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61	WCI 5303289032
