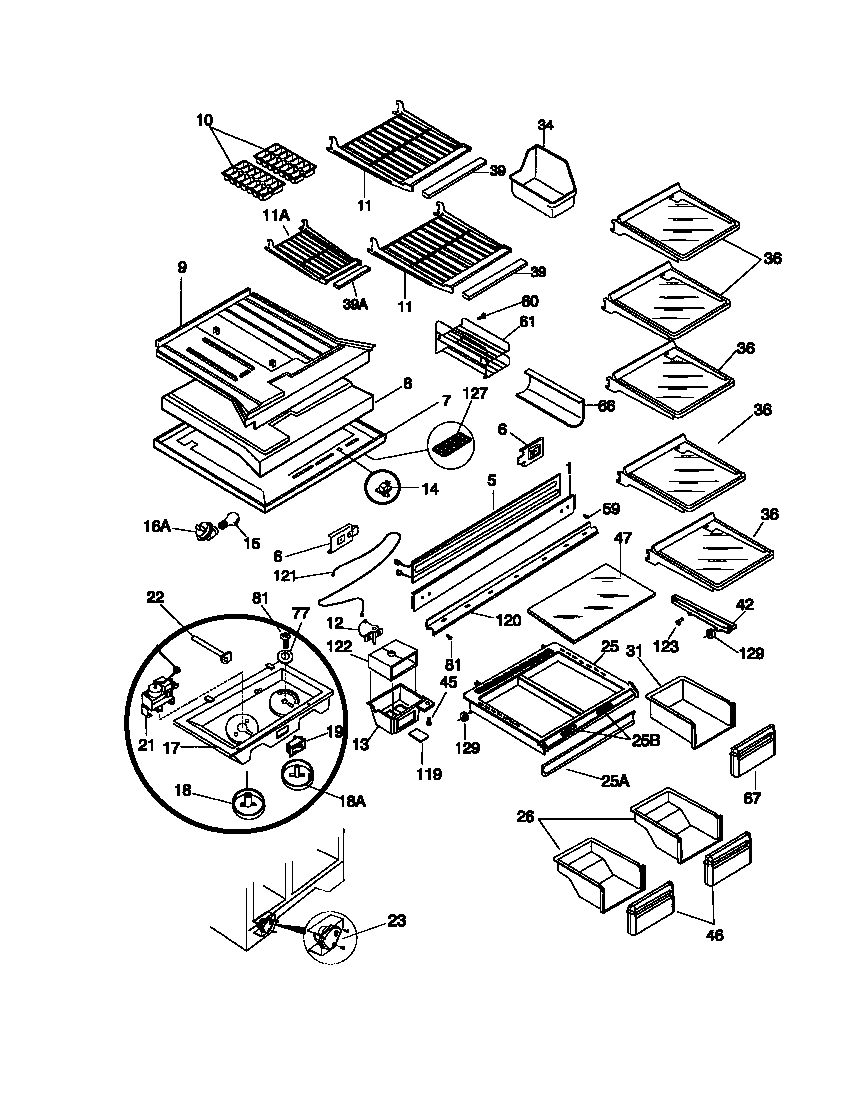

FRT20NGCD0 04 – SHELVES, CONTROLS

FRT20NGCD0 04 – SHELVES, CONTROLS

Written by

in

FRT20NGCD0 04 – SHELVES, CONTROLS

Products

PositionProduct
*11246WCI 215848000
*11245WCI 215339900
1WCI 5303299279
5WCI 215634100
6WCI 218279800
7AWCI 215055803
7BWCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292384
11WCI 5303292383
12AWCI 215132300
12BSPACER-AIR DEFLECTR
12CWASHER-AIR DEFLECTR
13BNUT, ANCHOR (NI)
13AWCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932904
18WCI 5303308309
18WCI 5303308310
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303305486
21BWCI 5303001260
22WCI 215932100
23DSHIELD-DEFROST TIMR,BTM
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23BCOVER-DEFROST TIMER, TOP
23C5304455649 Frigidaire Refrigerator Screw
25WCI 5303308349
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216635
26WCI 215298001
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 215217539
39WCI 5303284480
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390565
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61BGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
61AWCI 218429401
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122WCI 215132502
123215005101 Frigidaire Refrigerator Screw
127WCI 215771600
129BWCI 5303299153
129AWCI 5303299152
