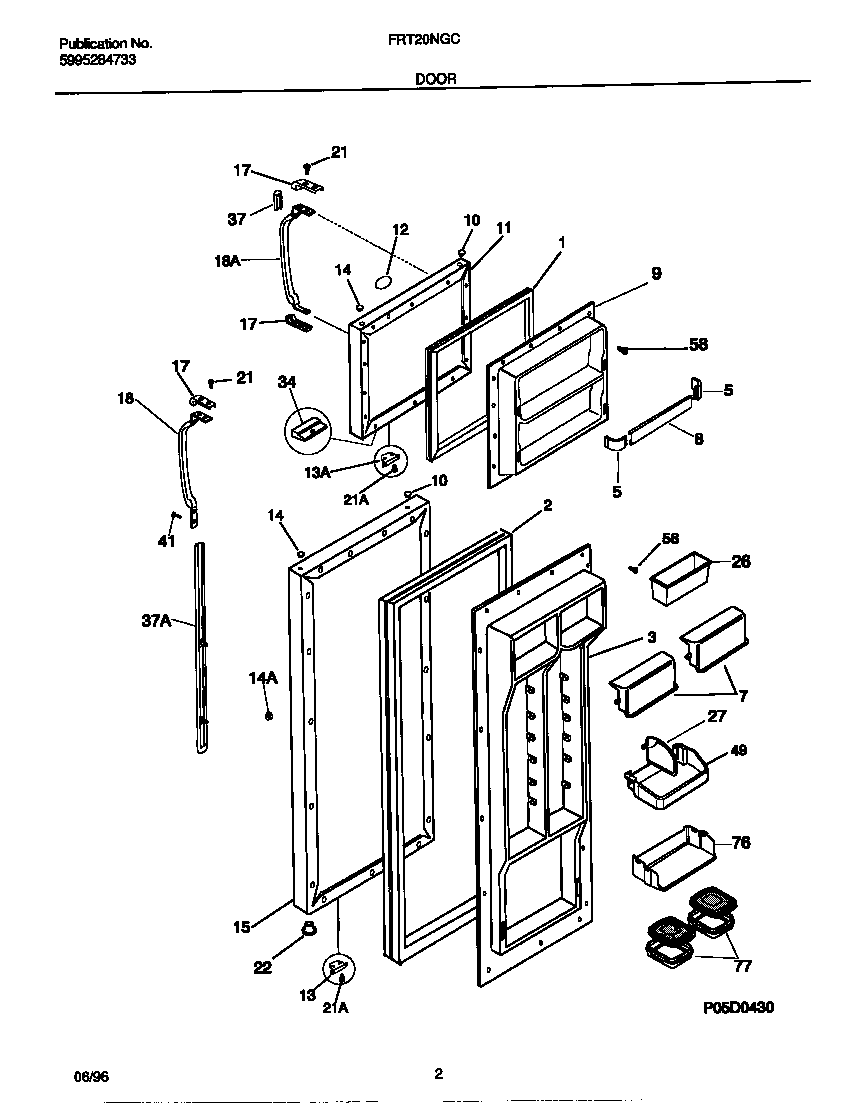

FRT20NGCD2 02 – DOOR

FRT20NGCD2 02 – DOOR

Written by

in

FRT20NGCD2 02 – DOOR

Products

PositionProduct
*15760INSULATION
1WCI 215608905
2WCI 5303297900
3WCI 215434701
5WCI 215251401
7WCI 5303308347
8215516220 Frigidaire Refrigerator Door Rack
9WCI 215278301
10WCI 5303292414
11WCI 5303917561
12WCI 218364005
12LABEL-NAMEPLATE,ALMOND
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
13WCI 215030011
14WCI 215352111
14WCI 215352211
15WCI 5303917564
17WCI 218696404
18WCI 215983219
18WCI 215981319
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423601
37WCI 215940700
37WCI 218549830
37TRIM-HANDLE,ALMOND ,LOWER ,W/GOLD BAND ,AND LOCK
41218843801 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
76WCI 218423900
77WCI 218423502
