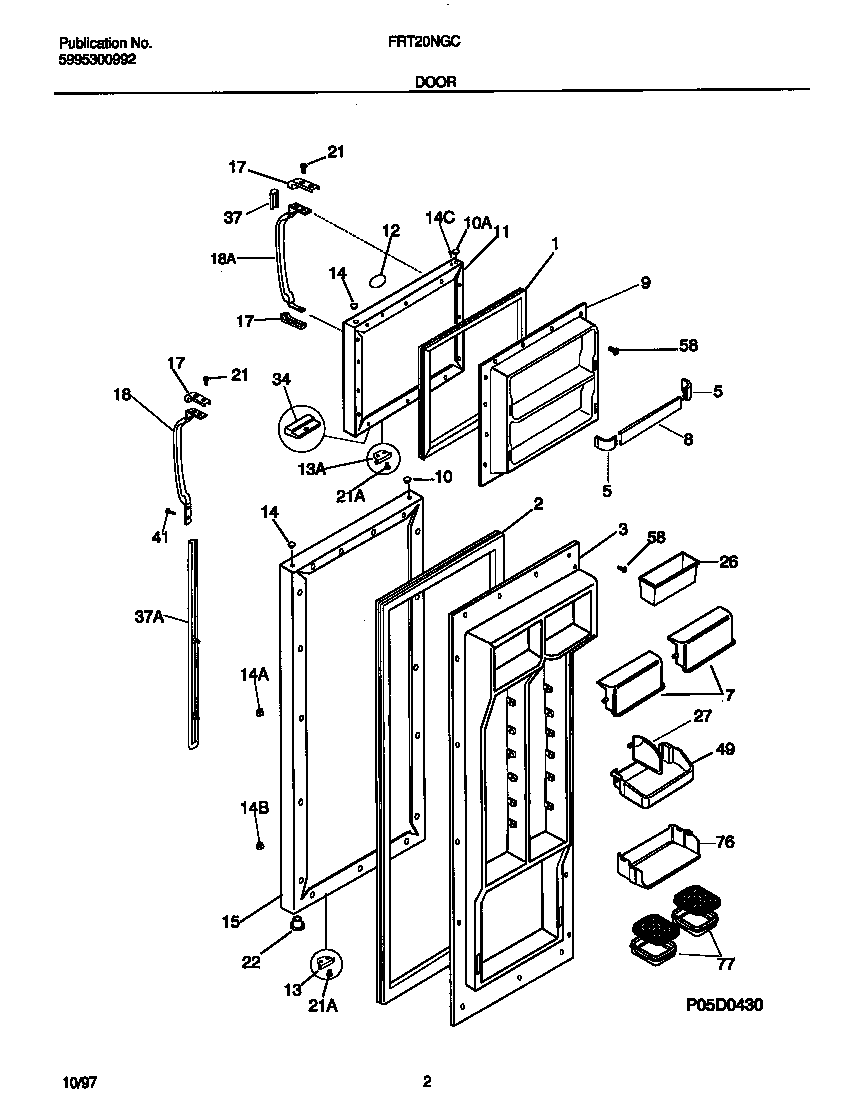

FRT20NGCD5 02 – DOOR

FRT20NGCD5 02 – DOOR

Written by

in

FRT20NGCD5 02 – DOOR

Products

PositionProduct
*55120INSULATION
1WCI 215608905
2WCI 218730612
3WCI 215434701
5WCI 218758701
7WCI 5303308347
8215516220 Frigidaire Refrigerator Door Rack
9WCI 215278301
10WCI 5303292414
10WCI 218696502
11WCI 5303917989
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
12LABEL-NAMEPLATE,ALMOND
13WCI 5303289522
13WCI 215030011
14WCI 215352111
14WCI 218696602
14WCI 215352211
14WCI 218074002
15WCI 5303917986
17WCI 218696404
18WCI 215983219
18WCI 215981319
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 218783201
37WCI 218549830
37WCI 218811602
37CWCI 218676003
37BWCI 215940700
37AWCI 215782300
41218843801 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423900
77WCI 218423502
