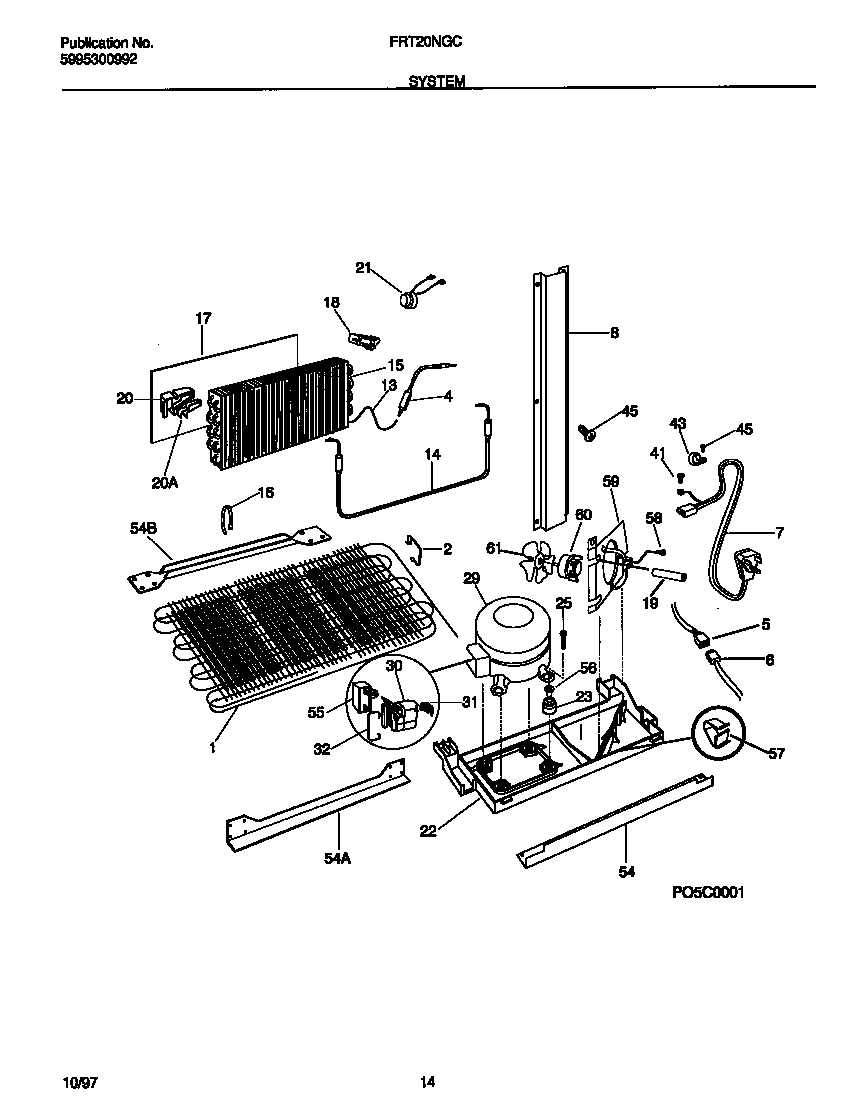

FRT20NGCD6 08 – SYSTEM

Products

Position	Product
*55129	HOT TUBE REPAIR KIT, SERVICE
1A	WCI 218787700
1B	SPACER TUBE
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218671800
6	WCI 215501601
7	WCI 215459201
8A	WCI 218803400
8B	SCREW,HEX HD SER WSHR ,8-18 X 0.375
13	WCI 215208801
14	5317842502 Frigidaire Defrost Heater
15	WCI 5303321220
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	WCI 218631200
20	WCI 5303292406
20	WCI 5303292405
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 216008904
31	WCI 5303321892
32	218762900 Frigidaire CLAMP
41	5308000039 Frigidaire Refrigerator Screw
43A	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43C	5308000133 Frigidaire Refrigerator Clamp
45E	5304455852 Frigidaire Refrigerator Screw
45A	5304455651 Frigidaire Refrigerator Screw
45C	WCI 218769200
54	WCI 5303289027
54	WCI 5303289292
54	WCI 5303289311
55	WCI 218764601
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59B	SEAL-FOAM,COND FAN SHROUD
59A	WCI 5303289031
60	WCI 215501901
61C	WCI 215004800
61B	WCI 215004700
61A	WCI 5303289032
