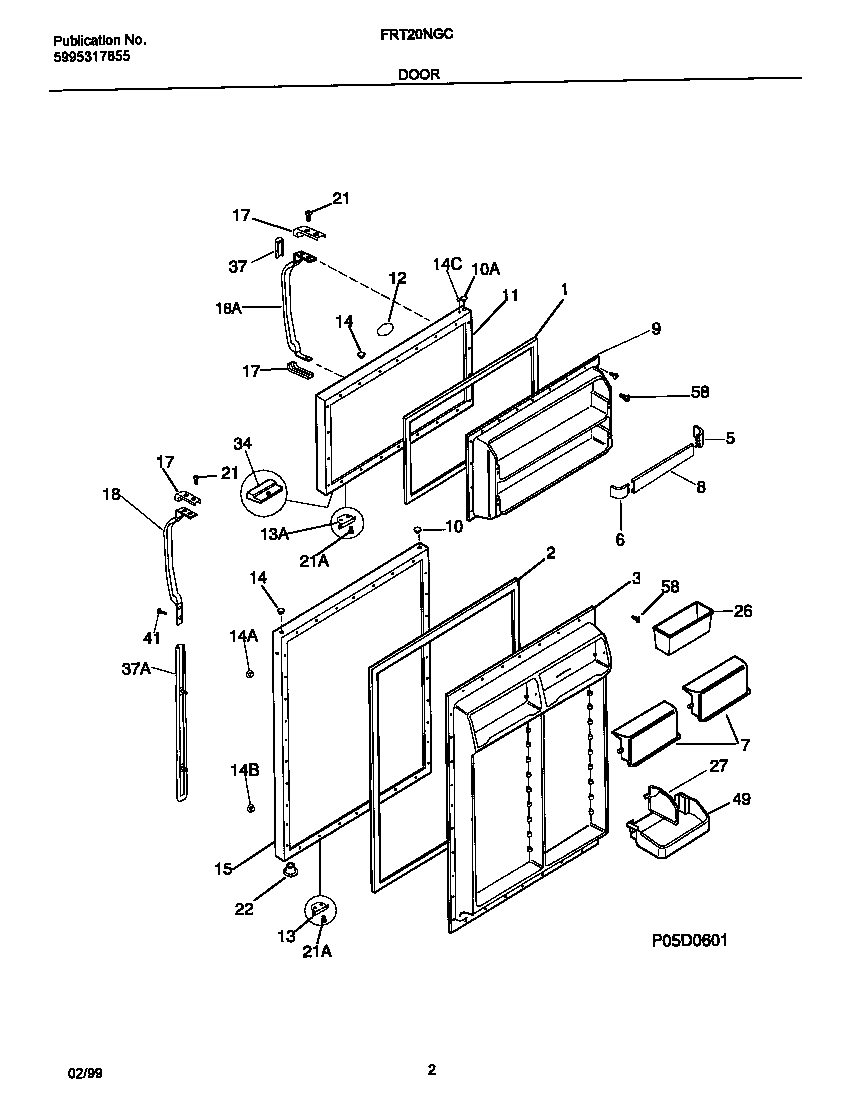

FRT20NGCDA 02 – DOORS

FRT20NGCDA 02 – DOORS

Written by

in

FRT20NGCDA 02 – DOORS

Products

PositionProduct
*32522INSULATION
*32520WCI 215008604
*32521TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608915
2WCI 218730611
3WCI 215434701
5218809801 Frigidaire Refrigerator Support-Door Rack
6218809701 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
8215516220 Frigidaire Refrigerator Door Rack
9WCI 215278301
10WCI 218696501
10WCI 5303292413
11WCI 5303917988
12WCI 218364004
13WCI 5303289522
13WCI 215030001
14WCI 218696601
14WCI 215352101
14WCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917985
17WCI 218696401
18WCI 215981301
18WCI 215983201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 218783201
37WCI 218549840
37WCI 215940700
37WCI 215782300
37WCI 218676003
37WCI 218811601
49215441502 Frigidaire Refrigerator Door Bin
58218781101 Frigidaire Handle Screw
