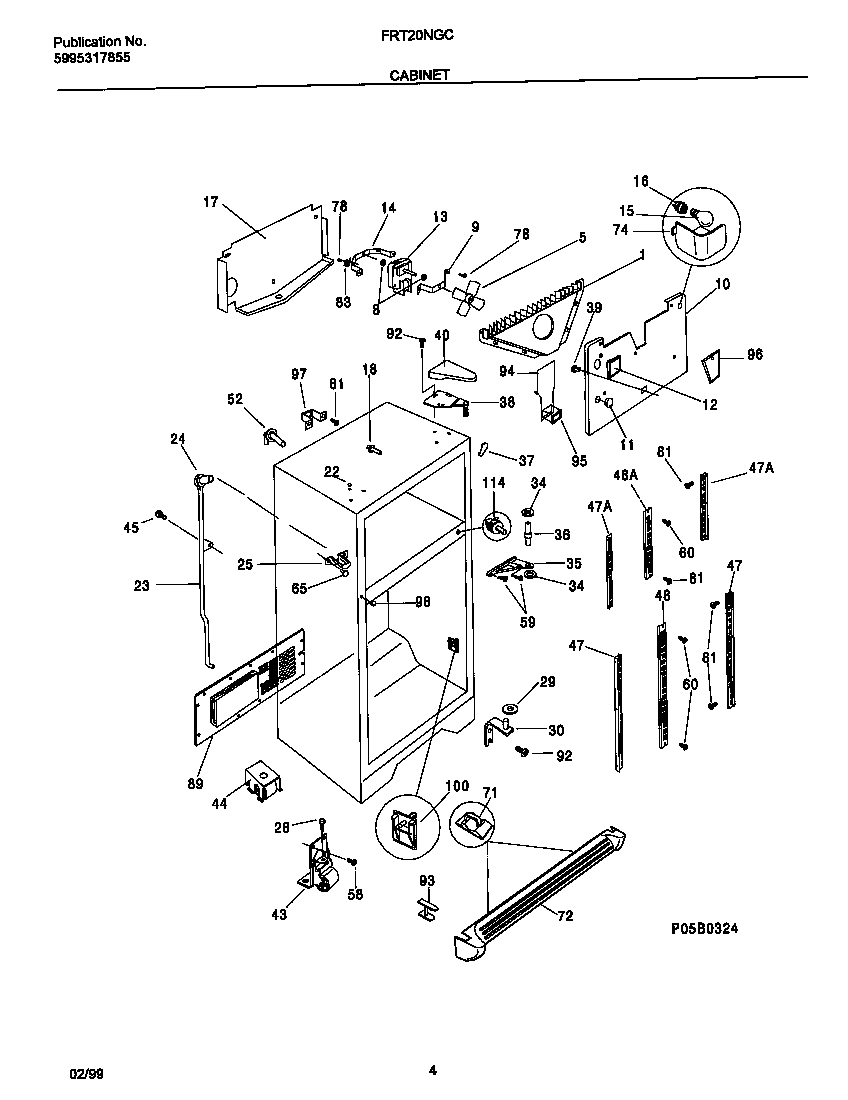

FRT20NGCDA 03 – CABINET

FRT20NGCDA 03 – CABINET

Written by

in

FRT20NGCDA 03 – CABINET

Products

PositionProduct
*325295304455852 Frigidaire Refrigerator Screw
*32528SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*32525WCI 218730700
*32526WCI 218730800
*32527WCI 5304403492
*32531SEAL-AIR DUCT COVER
*32524WCI 215314301
*32523215474201 Frigidaire Refrigerator Washer
*32530PLUG-WTR INLET TUBE
*32533PLUG, BUTTON, CABINET LINER (NI)
*325325303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10COVER-EVAP COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266302
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
34WCI 215095400
35WCI 218780001
36WCI 215095900
37WCI 5303321081
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
39WCI 08006983
40WCI 5303318773
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 215359500
47WCI 215209100
48WCI 215209200
48WCI 218877701
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
65WCI 5303001361
71218515401 Frigidaire Refrigerator Clip
72WCI 218359604
74WCI 215423500
81218362501 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362601
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
1145303289051 Frigidaire Refrigerator Light Switch
