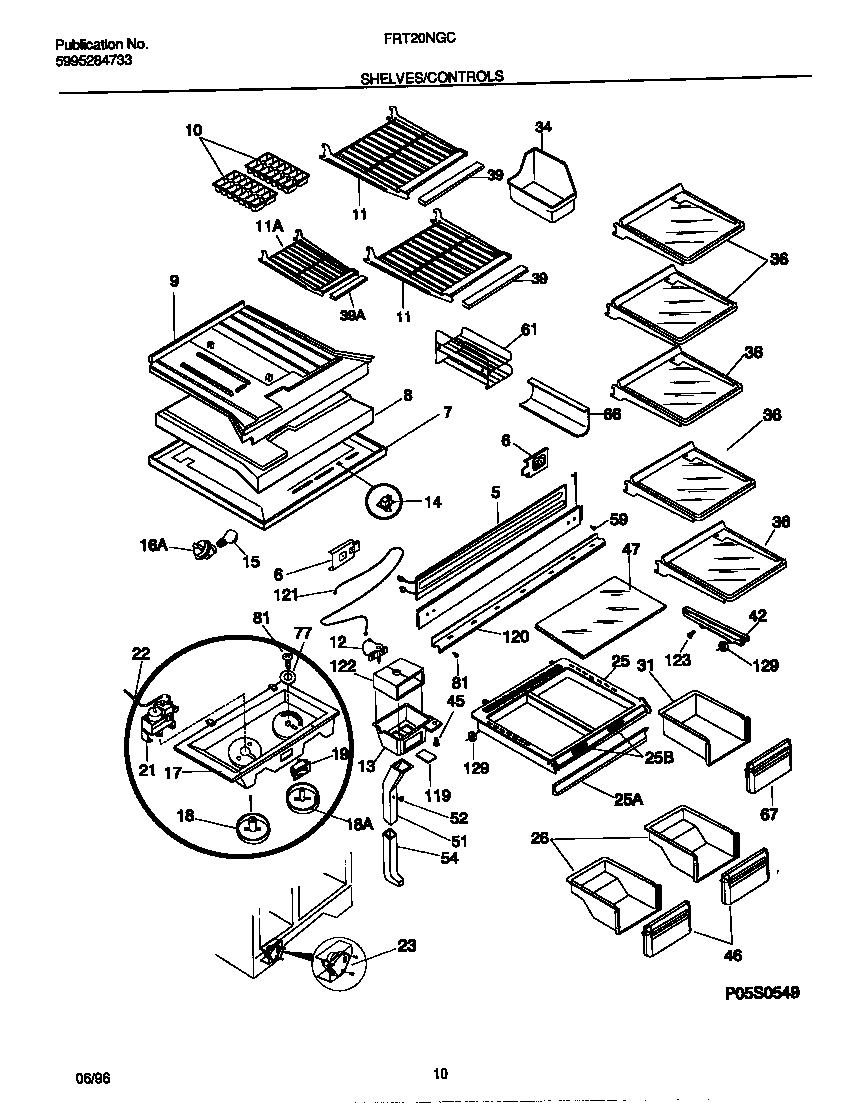

FRT20NGCW2 04 – SHELVES/CONTROLS

FRT20NGCW2 04 – SHELVES/CONTROLS

Written by

in

FRT20NGCW2 04 – SHELVES/CONTROLS

Products

PositionProduct
NICOVER-DEFROST TIMER, TOP
*15767WCI 218660800
NISHIELD-DEFROST TIMR,BTM
NIWASHER-AIR DEFLECTR
*15769WCI 215339900
NIWCI 218634800
*15765WCI 215339100
*15766WCI 215359900
NINUT-ANCHOR
NIWCI 215133300
NINUT,PUSH-ON ,DAMPER CABLE
NIHANGER-PAN/TRAY, RH
NIWCI 215133200
*15768WCI 215848000
NIWCI 5303001260
NIWCI 215133000
NI5304455649 Frigidaire Refrigerator Screw
NIWCI 5303299153
NIGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
NINUT, ANCHOR (NI)
1WCI 5303299279
5WCI 215634100
6WCI 218279800
7WCI 218646701
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292383
11WCI 5303292384
12AWCI 218634902
13AWCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 215932905
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303319419
22WCI 218660701
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
25WCI 5303308349
25WCI 215216635
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 215298001
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 5303284480
39AWCI 215217539
42AWCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390565
51WCI 215132809
52AWCI 215132901
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61AWCI 218620901
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121AWCI 215364001
122AWCI 218561204
122AWCI 218561202
123215005101 Frigidaire Refrigerator Screw
129AWCI 5303299152
