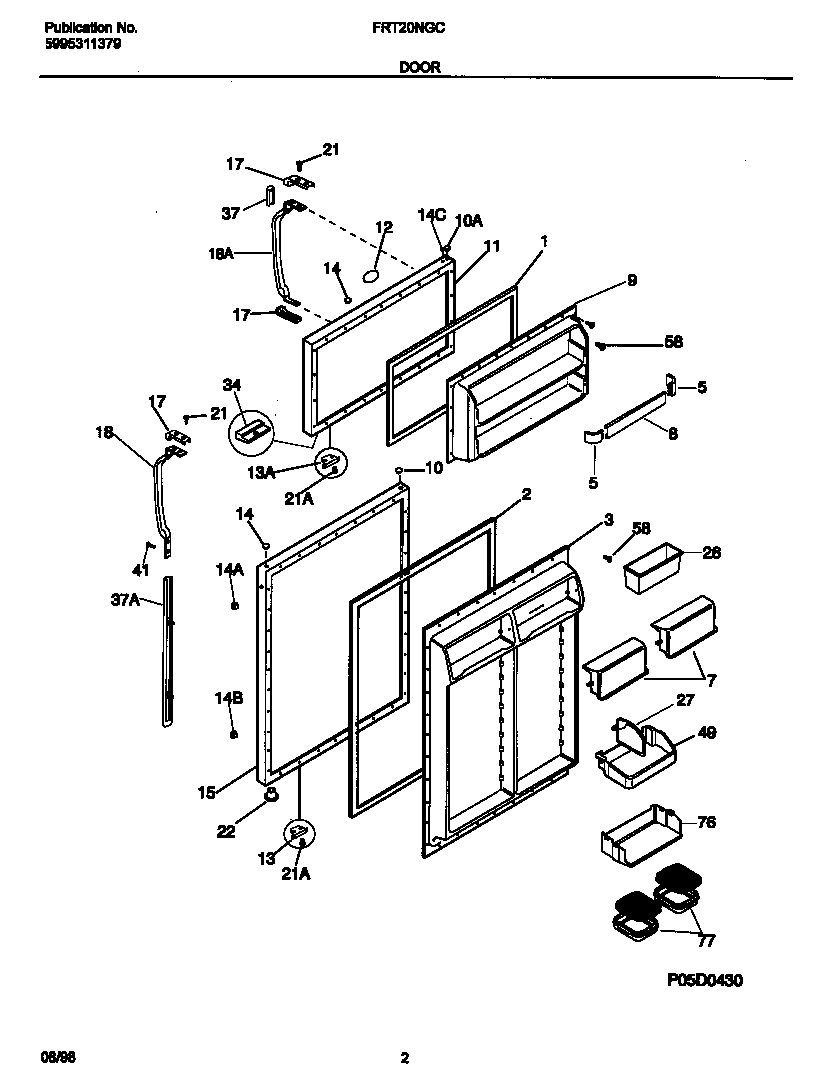

FRT20NGCW7 02 – DOORS

FRT20NGCW7 02 – DOORS

Written by

in

FRT20NGCW7 02 – DOORS

Products

PositionProduct
*31123TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*31124INSULATION
*31120WCI 5303001380
*31122WCI 215008604
1WCI 215608915
2WCI 218730611
3WCI 215434701
5B218809801 Frigidaire Refrigerator Support-Door Rack
5A218809701 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
8215516220 Frigidaire Refrigerator Door Rack
9WCI 215278301
10WCI 218696501
10WCI 5303292413
11WCI 5303917988
12WCI 218364004
13WCI 215030001
13WCI 5303289522
14WCI 218074001
14WCI 215352101
14WCI 218696601
14240494001 Frigidaire Refrigerator Plug Button
15AWCI 5303917563
15BWCI 5303917564
17WCI 218696401
18WCI 215981301
18WCI 215983201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 218783201
37AWCI 215782300
37WCI 215867076
37WCI 218549826
37BWCI 215940700
37CWCI 218676003
37WCI 218811601
37DWCI 218807701
415308000039 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423900
77WCI 218423502
