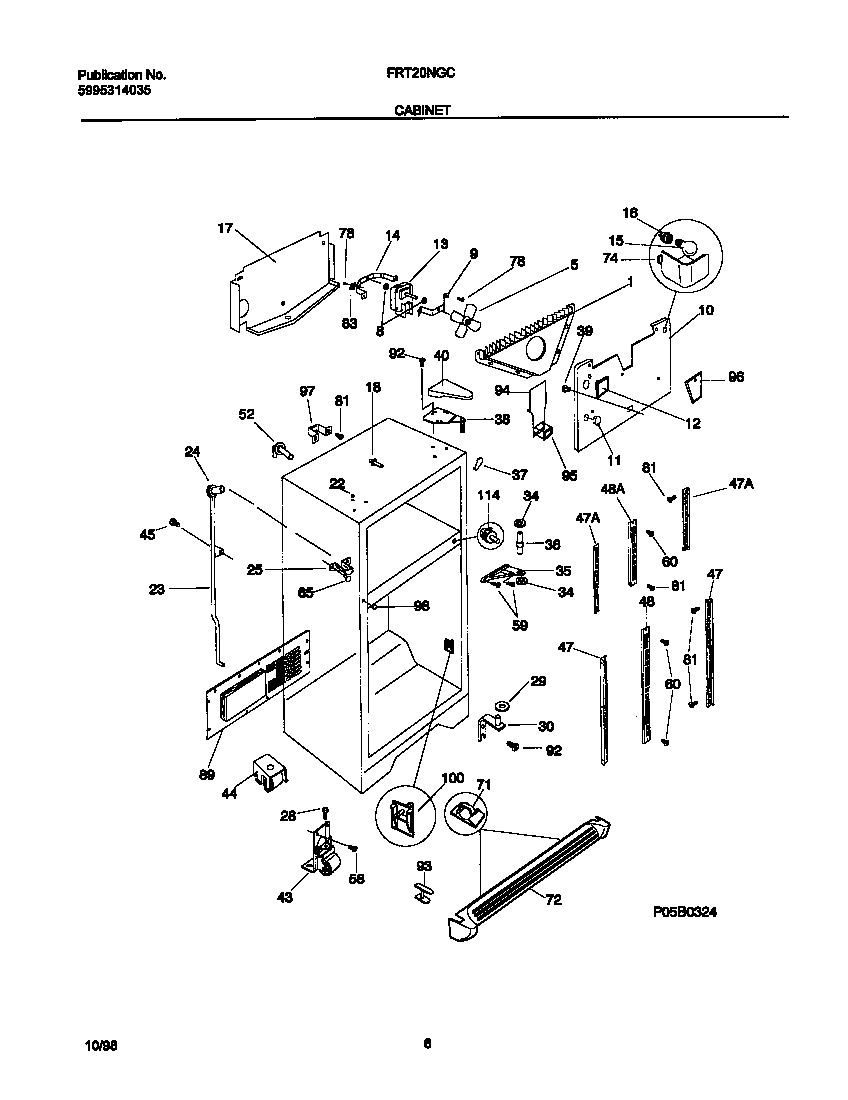

FRT20NGCW9 03 – CABINET

FRT20NGCW9 03 – CABINET

Written by

in

FRT20NGCW9 03 – CABINET

Products

PositionProduct
*04250SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*04256PLUG, BUTTON, CABINET LINER (NI)
*04249WCI 5304403492
*04252SEAL-AIR DUCT COVER
*04248WCI 218730800
*04247WCI 218730700
*04251PLUG-WTR INLET TUBE
*042555303321319 Frigidaire Refrigerator White Touch Up Paint
*04245215474201 Frigidaire Refrigerator Washer
*042465304500008 Frigidaire Oven Screw
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10COVER-EVAP COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266302
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29AWCI 215003200
29BWCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 215002601
36WCI 215095900
37WCI 5303321081
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
39WCI 08006983
40WCI 218374407
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 215209100
47WCI 215359500
48WCI 218487200
48WCI 215209200
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
65WCI 5303001361
71218515401 Frigidaire Refrigerator Clip
72WCI 218359604
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362601
94WCI 5303319993
95WCI 218663100
96BWCI 215775901
96AWCI 215775900
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
1145303289051 Frigidaire Refrigerator Light Switch
