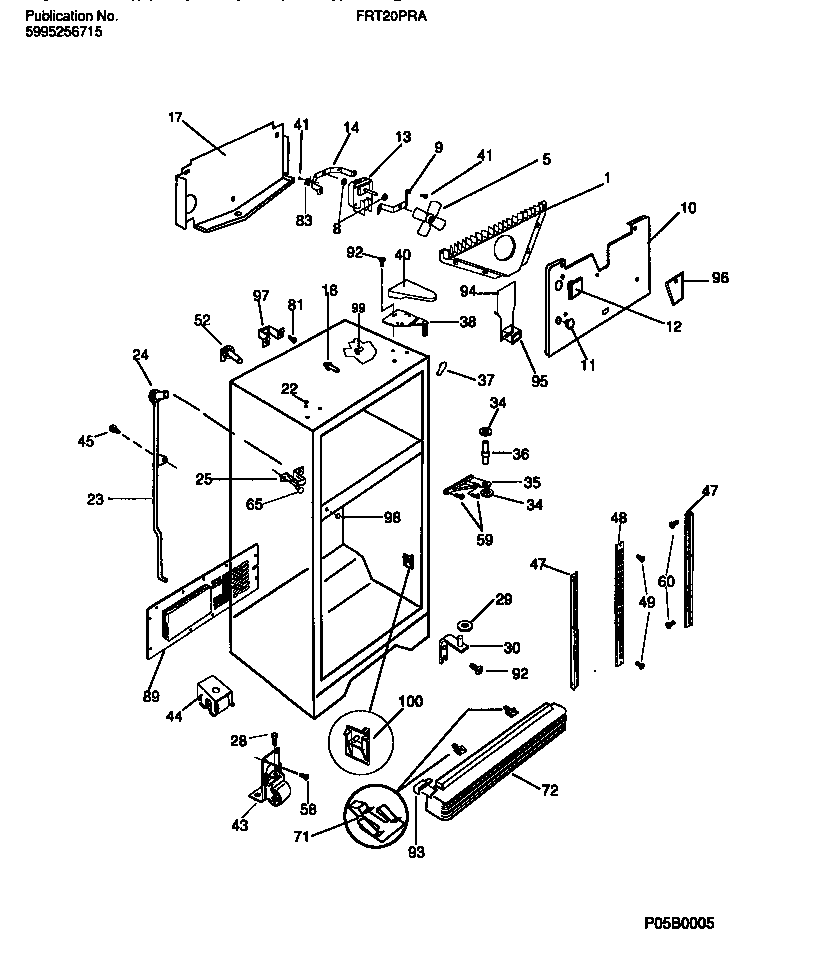

FRT20PRAW2 03 – CABINET W/FAN ASSEMBLY

FRT20PRAW2 03 – CABINET W/FAN ASSEMBLY

Written by

in

FRT20PRAW2 03 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
*97161PLUG, BUTTON, CABINET LINER (NI)
*971635303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13A215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266302
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30WCI 218150800
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
34WCI 215095400
35WCI 215002601
36WCI 215095900
37TRIM-CABINET CORNER, WHITE
38WCI 218158000
40WCI 5303288945
415308000039 Frigidaire Refrigerator Screw
43WCI 5303289059
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 215359500
48WCI 215359600
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52APLUG-WTR INLET TUBE
52WCI 5303289294
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
65WCI 5303001361
71WCI 215003300
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72AWCI 215362901
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327101
94WCI 5303292669
94ASEAL-AIR DUCT COVER
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
99GROMMET-SHELF MTG,1.25“ LONG
99AGROMMET-SHELF MTG,.69“ LONG
100SUPPORT-PAN COVER
