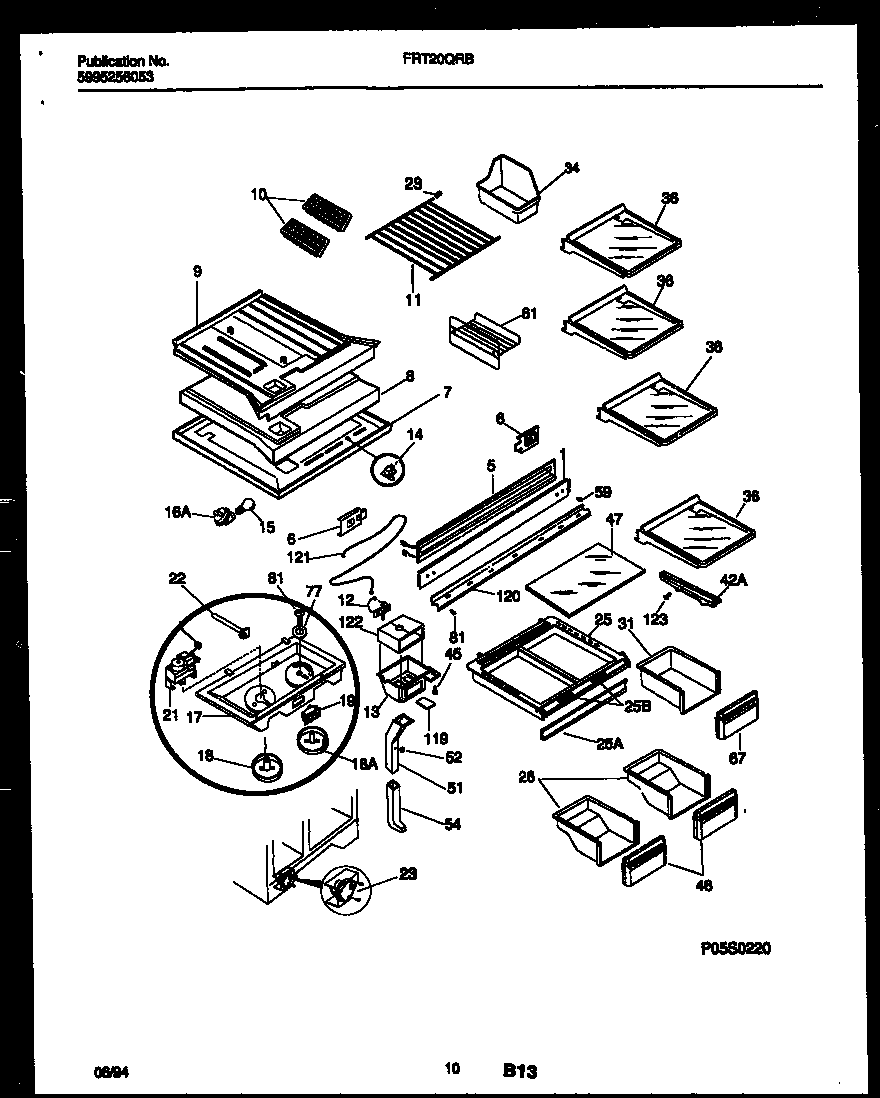

FRT20QRBD1 06 – SHELVES AND SUPPORTS

FRT20QRBD1 06 – SHELVES AND SUPPORTS

Written by

in

FRT20QRBD1 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002201
5WCI 215096800
6WCI 215096700
7AWCI 5303001380
7WCI 215055803
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303297948
11ASPACER-FRZR SHELF
12WCI 215132300
12ASPACER-AIR DEFLECTR
12BWASHER-AIR DEFLECTR
13WCI 215420300
13ANUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 215932903
17ANUT-ANCHOR
18WCI 5303296667
18AWCI 5303296668
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303303674
22WCI 215932100
23B5304455649 Frigidaire Refrigerator Screw
23CSHIELD-DEFROST TIMR,BTM
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23ACOVER-DEFROST TIMER, TOP
25AWCI 5303292391
25WCI 215296502
25B5303307715 Frigidaire Refrigerator Humidity Control
26WCI 215298001
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215406102
42AHANGER-PAN/TRAY, RH
42AWCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 5303292657
47WCI 5303304625
51WCI 215132801
51AWCI 215133200
51BWCI 215133300
52WCI 215132901
52AWCI 215133000
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303292662
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121WCI 215364001
121ANUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123215005101 Frigidaire Refrigerator Screw
10473WCI 215339900
10473WCI 215848000
