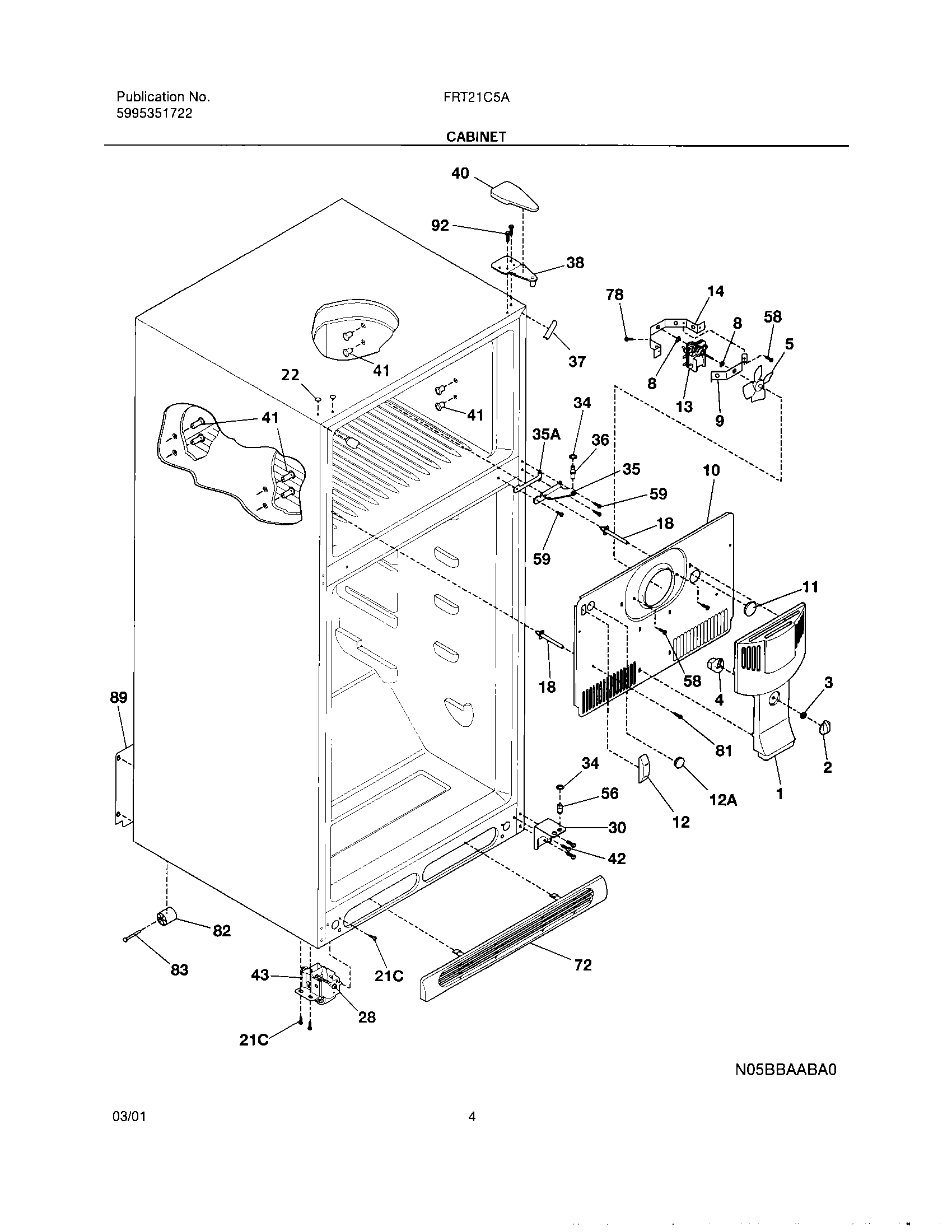

FRT21C5AQ1 05 – CABINET

FRT21C5AQ1 05 – CABINET

Written by

in

FRT21C5AQ1 05 – CABINET

Products

Position	Product
NI	WCI 240385401
NI	5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI	PLUG, BUTTON, CABINET LINER (NI)
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241953902 Frigidaire Refrigerator Screw
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI 240355402
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240313606
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 240366801
12	WCI 240374401
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
18	WCI 240345801
21	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	BRACKET-CTR HINGE, BISQUE
35	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER
38	240313703 Frigidaire Refrigerator Hinge
40	WCI 240354403
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 240368202
81	5304455651 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241500303 Frigidaire Refrigerator Screw
89	WCI 240326102
92	241710601 Frigidaire Refrigerator Screw
