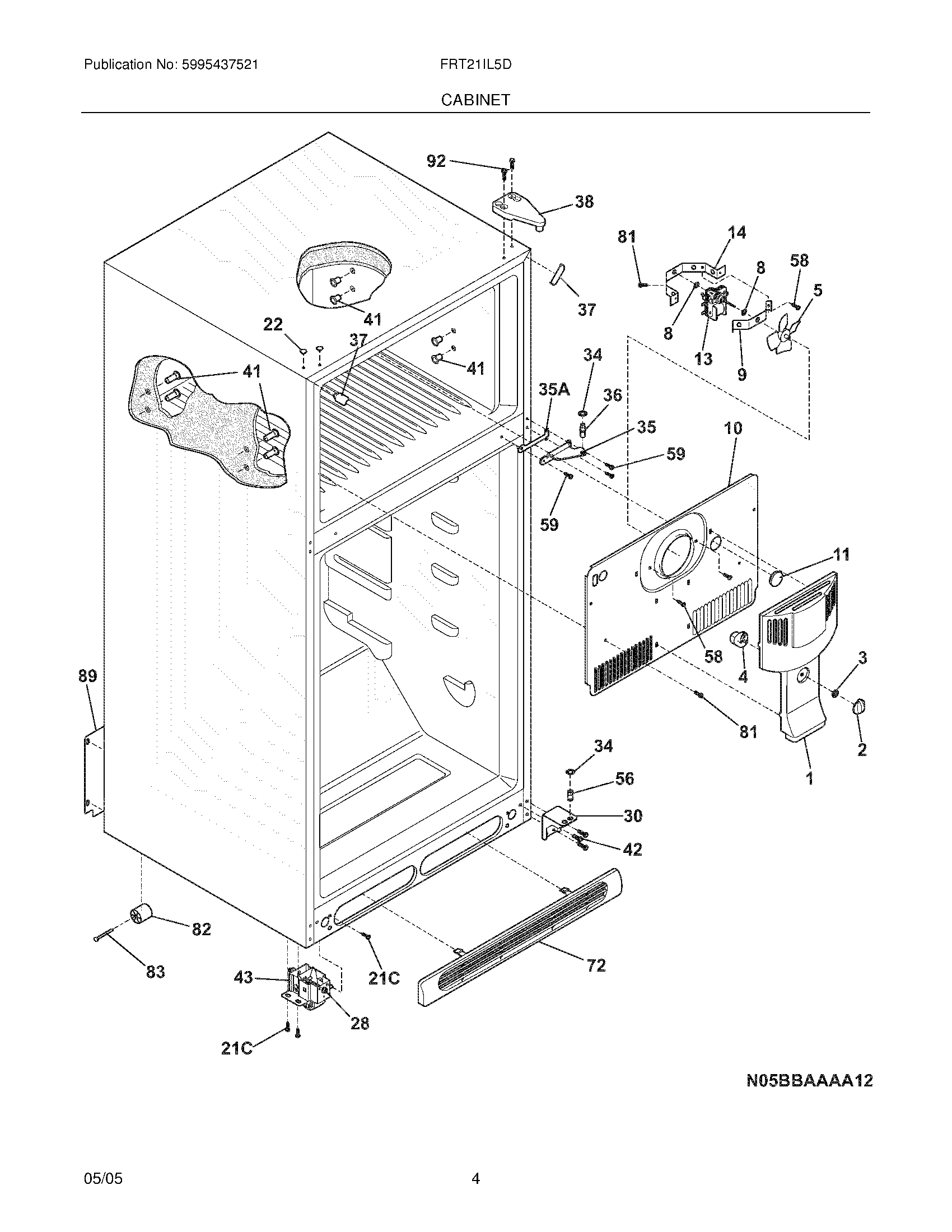

FRT21IL5DQN 05 – CABINET

Products

PositionProduct
NIWCI 240524701
NI240568606 Frigidaire Refrigerator Coil Cover Seal
NI5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI241500303 Frigidaire Refrigerator Screw
NIClamp-motor wiring,nylon ,w/adhesive tape
1WCI 240355402
2240367001 Frigidaire Refrigerator Air Damper Control Knob
3Nut
4WCI 241523701
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 240313610
115303208309 Frigidaire Refrigerator Plug Hole
13No.EVAP MOTOR KIT
14240438003 Frigidaire Refrigerator Bracket & Bushing
21C218252201 Frigidaire Refrigerator Screw
22215774901 Frigidaire Refrigerator Button Plug
30240314011 Frigidaire Refrigerator Lower Bracket Hinge
34240311303 Frigidaire Refrigerator Hinge Nylon Washer
35WCI 240313801
35A240336802 Frigidaire Refrigerator Hinge Spacer
36241708002 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER
38240313703 Frigidaire Refrigerator Hinge
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
56240516502 Frigidaire Refrigerator Lower Hinge Pin
585304455651 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 240368206
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
89241733911 Frigidaire Refrigerator Access Cover
92241710601 Frigidaire Refrigerator Screw
