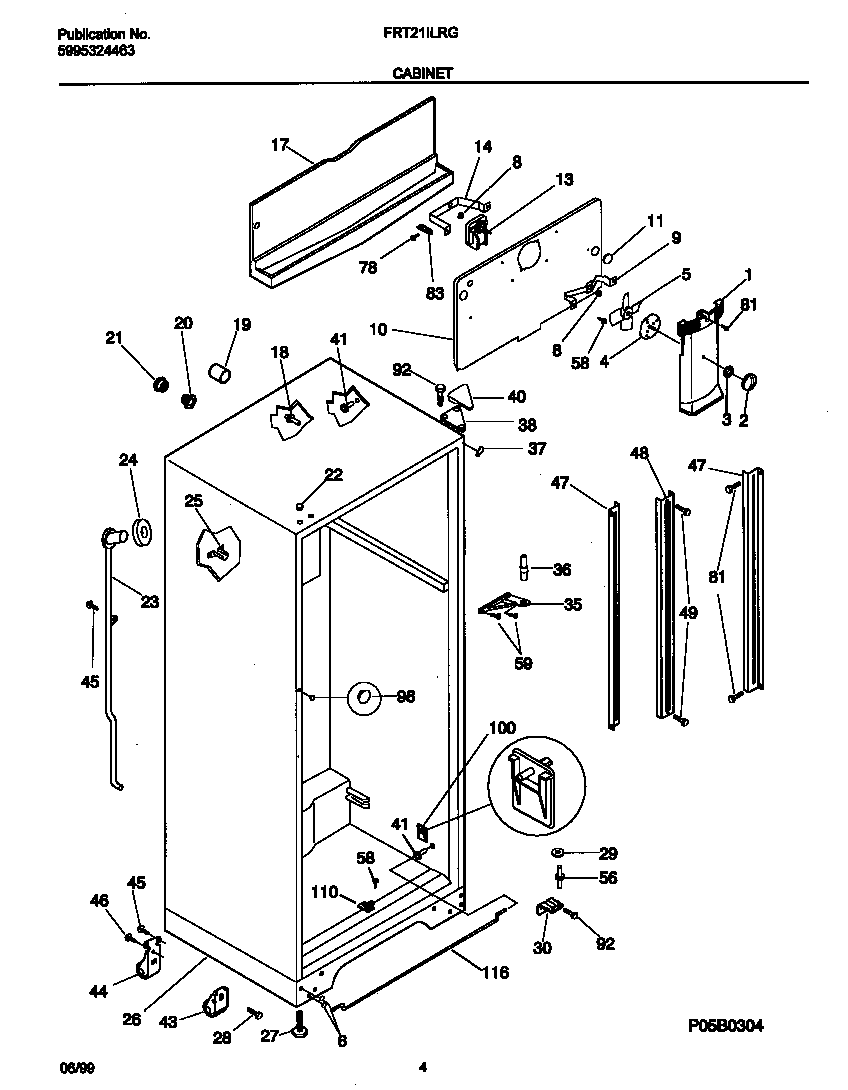

FRT21ILRGD0 03 – CABINET

Products

Position	Product
*71650	WCI 218605200
*71655	TOUCH, UP PAINT, ALMOND (NI)
*71649	WCI 5308011326
*71648	WASHER,NYLON ,0.245 ID W/NIBS
*71651	WCI 218605300
*71652	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*71654	WCI 5308009790
*71653	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI 5304402655
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 218802800
11	5303208309 Frigidaire Refrigerator Plug Hole
13	WCI 218895003
14	WCI 5303322992
17	WCI 5303001470
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	WCI 215774911
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 218605102
27	Screw-leveling,(2)
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WCI 218666700
30	WCI 218220202
35	WCI 218220102
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321082
38	WCI 3206100
40	WCI 3206105
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218703001
44	WCI 218713600
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	WCI 218233300
48	WCI 5303292395
49	218362501 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
92	241710601 Frigidaire Refrigerator Screw
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
110	WCI 215363501
116	WCI 215426703
