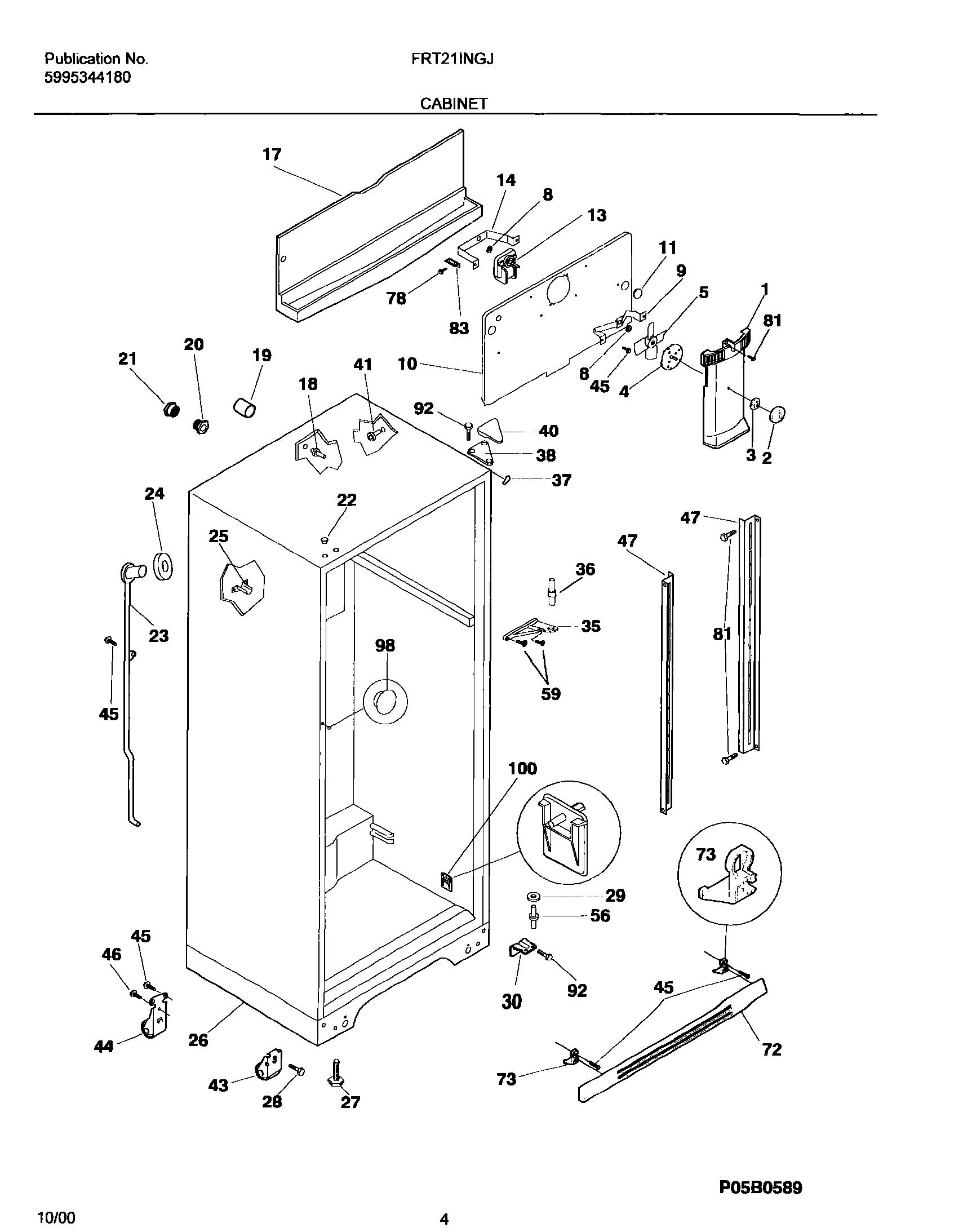

FRT21INGJB1 05 – CABINET

Products

Position	Product
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	WCI 218905701
1	WCI 5304402655
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 218973801
11	5303208309 Frigidaire Refrigerator Plug Hole
13	WCI 218878801
14	BRACKET-MOTOR MTG, REAR
17	WCI 218974001
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	215774918 Frigidaire Refrigerator Button Plug
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 218605103
27	Screw-leveling,(2)
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WCI 218666700
29	WASHER,NYLON ,0.245 ID W/NIBS
30	WCI 218605200
30	WCI 218605300
30	WCI 218220203
35	WCI 218998903
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321083
38	WCI 3206100
40	WCI 5304400454
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218703001
43	WCI 5308009790
43	WCI 5308011326
44	WCI 218713600
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	WCI 218233300
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 218916406
73	WCI 218896704
81	218362501 Frigidaire Refrigerator Screw
83	WCI 5308000107
92	241710601 Frigidaire Refrigerator Screw
98	PLUG-BUTTON,BLACK
100	SUPPORT-PAN COVER
