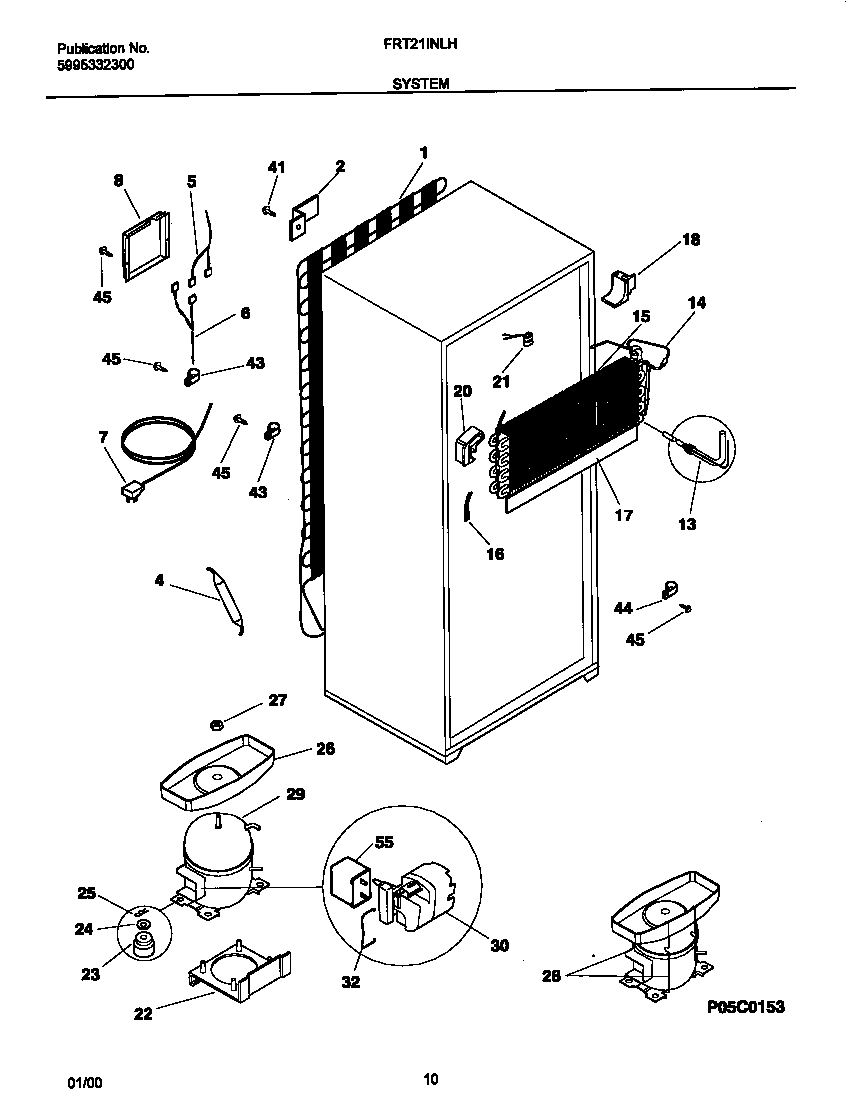

FRT21INLHB2 05 – SYSTEM

Products

Position	Product
*23020	WCI 5304406040
*23021	WCI 5304406721
*23025	WCI 218905701
*23024	5304455852 Frigidaire Refrigerator Screw
*23022	WCI 5304406722
*23023	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
*23019	WCI 5304406039
*23026	HOT TUBE REPAIR KIT-SERVICE
1	WCI 218657100
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076405
14	5317842502 Frigidaire Defrost Heater
15	WCI 218765400
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218773700
20	INSULATION BLOCK, LH
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721101
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5308000133 Frigidaire Refrigerator Clamp
44	WCI 218974101
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
