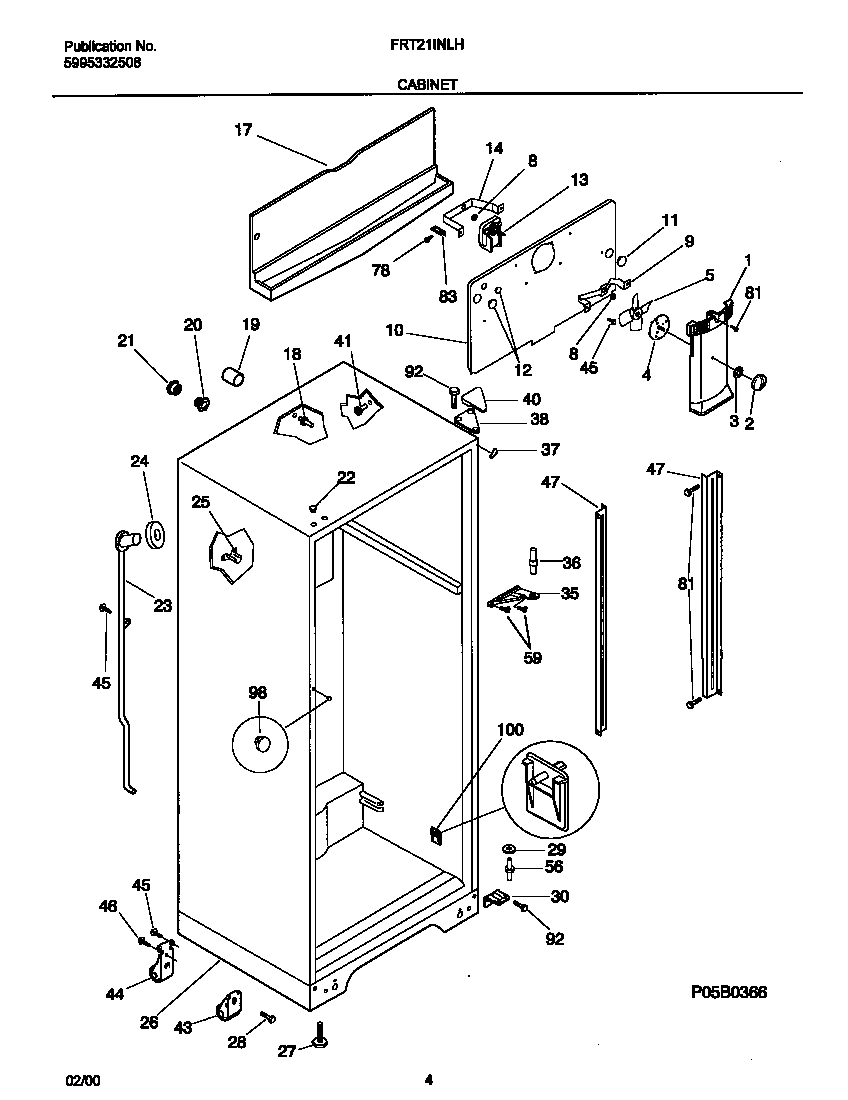

FRT21INLHW3 03 – CABINET

FRT21INLHW3 03 – CABINET

Written by

in

FRT21INLHW3 03 – CABINET

Products

PositionProduct
*748455304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*74842WCI 218666700
*74841NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*74844WCI 218605300
*748495303321319 Frigidaire Refrigerator White Touch Up Paint
*74843WCI 218605200
*74846WCI 218905701
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218802800
115303208309 Frigidaire Refrigerator Plug Hole
13WCI 218878801
14WCI 5303322992
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605101
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER,NYLON ,0.245 ID W/NIBS
30WCI 218220203
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
