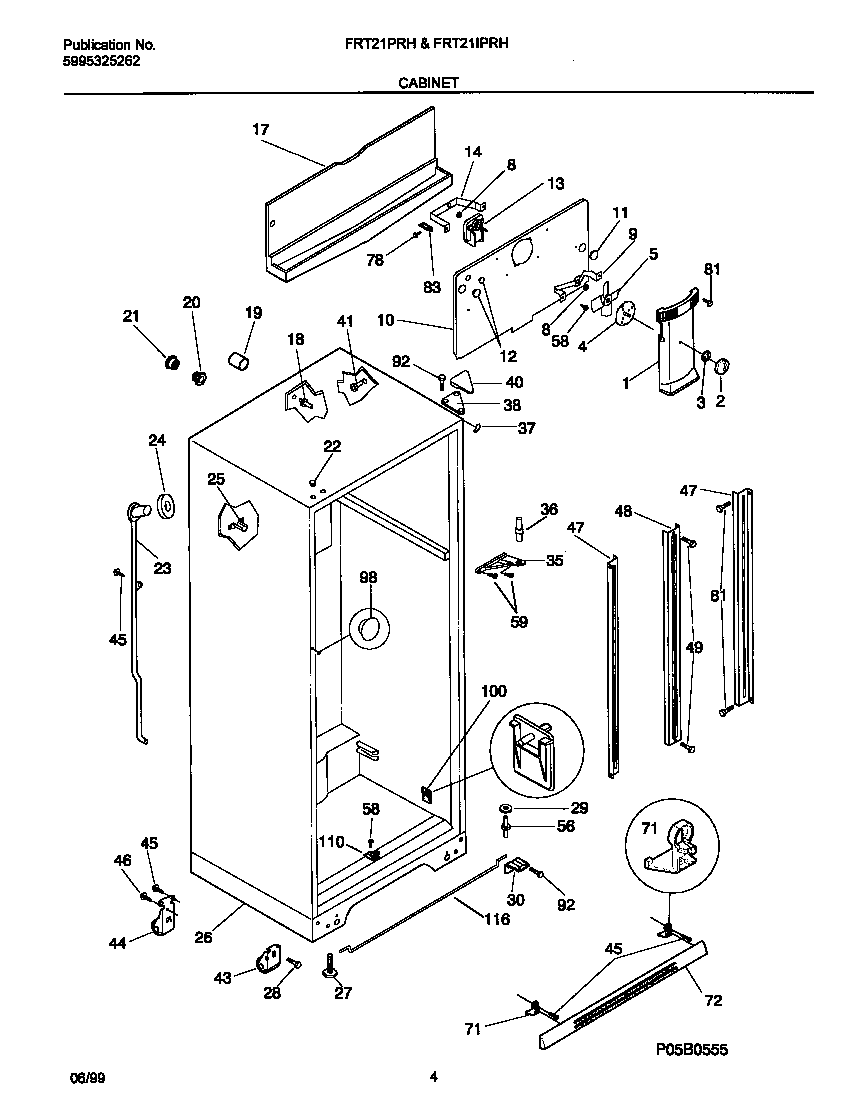

FRT21IPRHW2 03 – CABINET

FRT21IPRHW2 03 – CABINET

Written by

in

FRT21IPRHW2 03 – CABINET

Products

PositionProduct
*836455304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*83641WASHER,NYLON ,0.245 ID W/NIBS
*83644WCI 218605300
*83643WCI 218605200
*83642WCI 5308011326
*83646WCI 218905701
*836485303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218802800
115303208309 Frigidaire Refrigerator Plug Hole
13WCI 218895003
14WCI 5303322992
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605101
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 218666700
30WCI 218220202
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
585304455651 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
71WCI 218896704
72WCI 218916404
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
110WCI 215363501
116WCI 215426703
