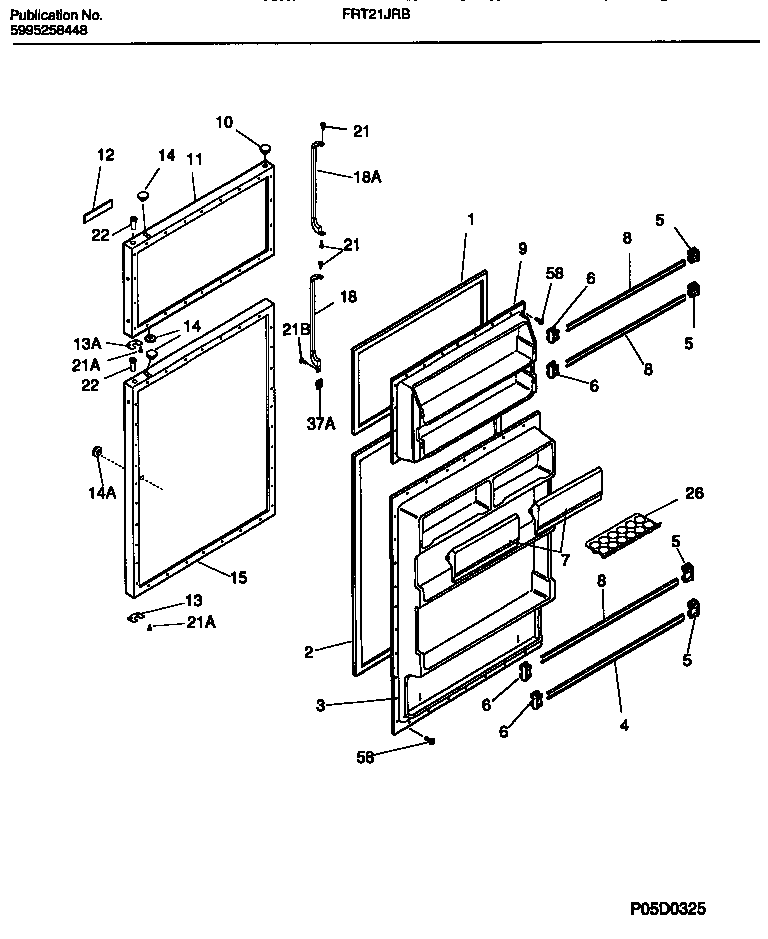

FRT21JRBD0 02 – DOOR SECTION

FRT21JRBD0 02 – DOOR SECTION

Written by

in

FRT21JRBD0 02 – DOOR SECTION

Products

PositionProduct
*42160INSULATION
1WCI 215608903
2WCI 215732403
3WCI 5303212482
4WCI 215139836
5WCI 5303007295
6WCI 5303007297
7WCI 5303304564
8WCI 215139838
9WCI 5318540802
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917387
12WCI 215008602
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917405
18WCI 215482122
18AHANDLE-DOOR, 19.51“, ALMOND
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, ALMOND, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
