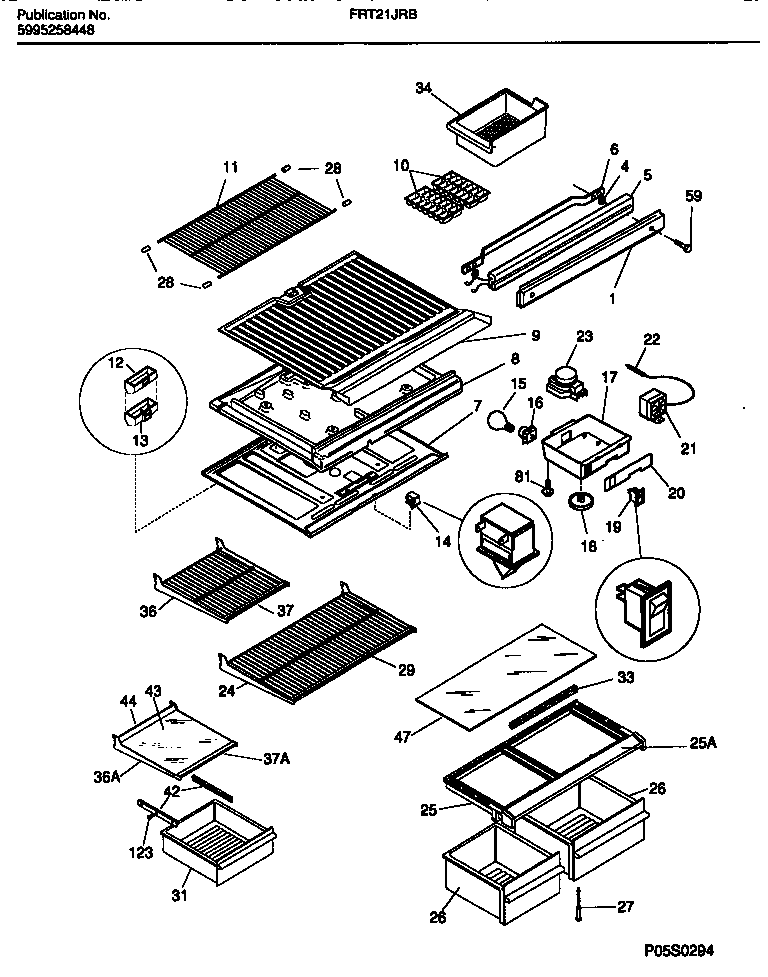

FRT21JRBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT21JRBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT21JRBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 5303200370
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
7BWCI 5303001380
8WCI 5308013674
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17ANUT, ANCHOR (NI)
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23WCI 21567800
23A5304455649 Frigidaire Refrigerator Screw
24WCI 5303273155
25AWCI 5303280075
25WCI 5303206538
26AWCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303284483
31WCI 5303295941
33WCI 530320329
345303212918 Frigidaire Refrigerator Cont
36AFRAMER, HALF SHELF, CATILEVER
36SHELF, CANTILEVER, HALF WIDETH, WIRE
37WCI 5303284484
37AWCI 215919410
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
43WCI 215723544
44WCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
