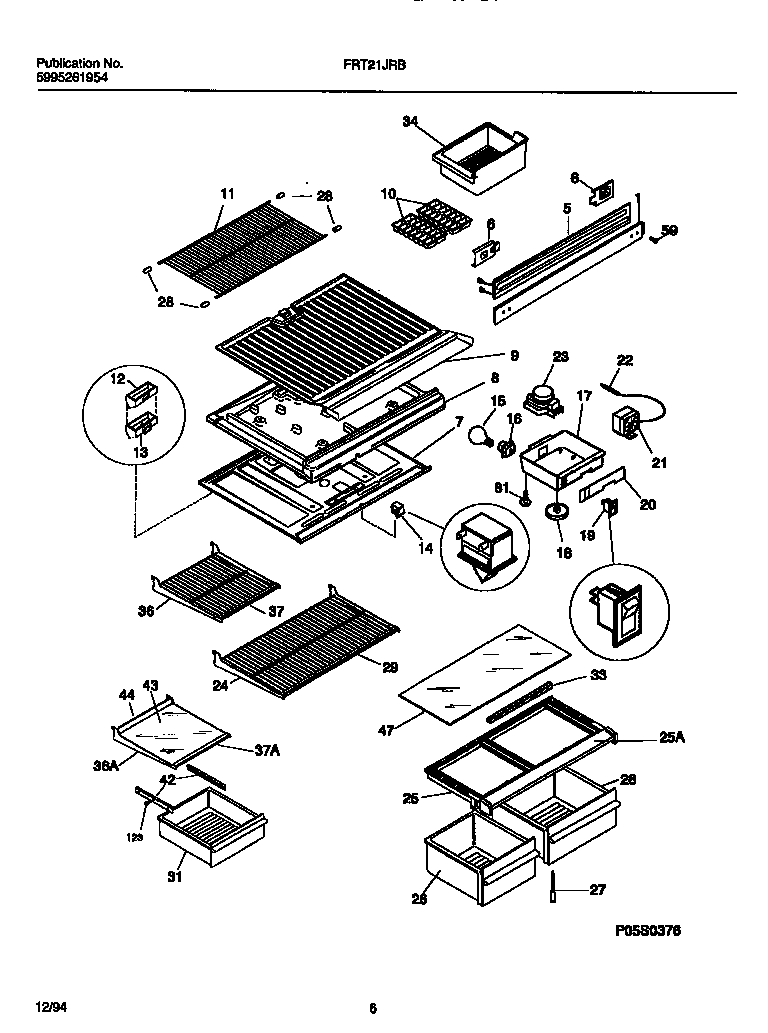

FRT21JRBD1 04 – SHELVES, DIVIDERS

FRT21JRBD1 04 – SHELVES, DIVIDERS

Written by

in

FRT21JRBD1 04 – SHELVES, DIVIDERS

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7WCI 5303001380
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
8HARNESS-DIVIDER (NON-ILLUSTRATED)
8WCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17NUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21WCI 5303200810
21WCI 5303001260
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24WCI 5303273155
25AWCI 5303280075
25WCI 5303206538
26WCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303284483
31WCI 5303295941
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
36SHELF, CANTILEVER, HALF WIDETH, WIRE
36AFRAMER, HALF SHELF, CATILEVER
37AWCI 215919410
37WCI 5303284484
42HANGER-PAN/BASKET, LH
42HANGER-PAN/BASKET, RH
43WCI 215723544
44WCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
