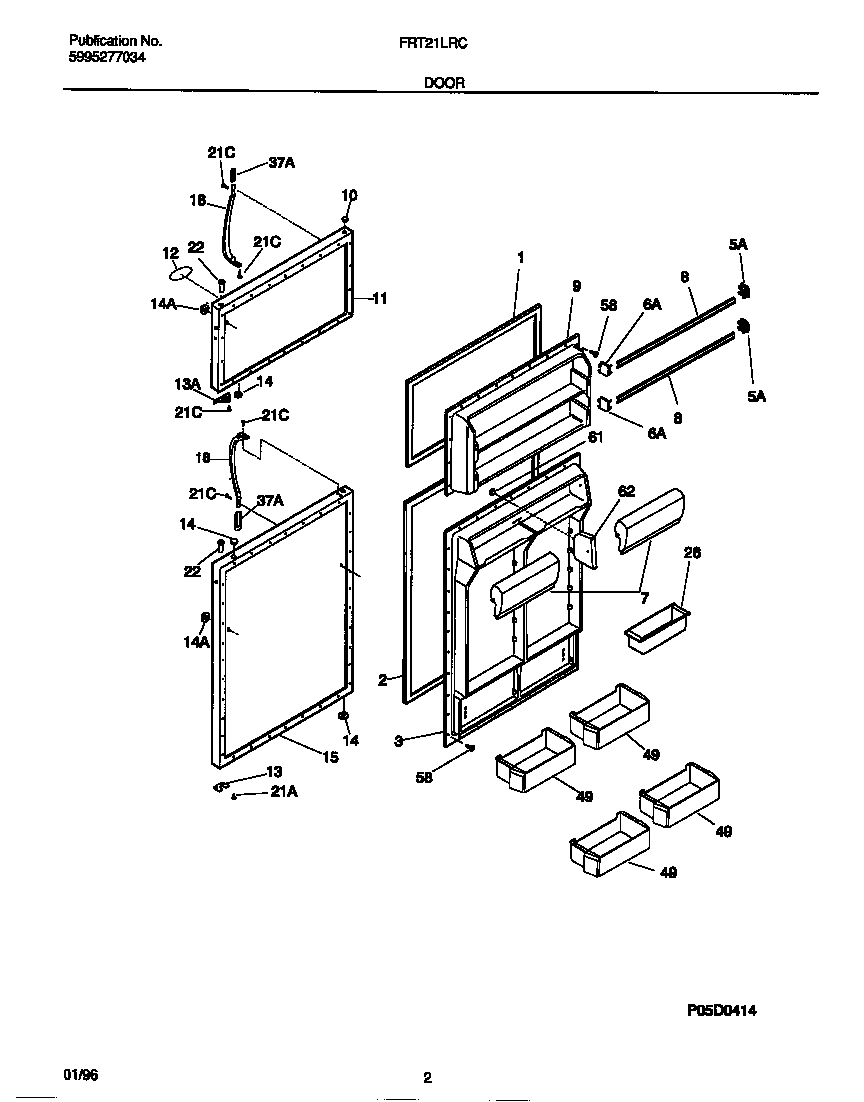

FRT21LRCD1 02 – DOOR

FRT21LRCD1 02 – DOOR

Written by

in

FRT21LRCD1 02 – DOOR

Products

PositionProduct
*79160INSULATION
1WCI 215608903
2WCI 215732403
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308337
8WCI 215474041
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917609
12WCI 218156515
12LABEL-NAMEPLATE,ALMOND
12WCI 218364002
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14WCI 215352211
15WCI 5303917611
18WCI 218363402
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215867026
37WCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
