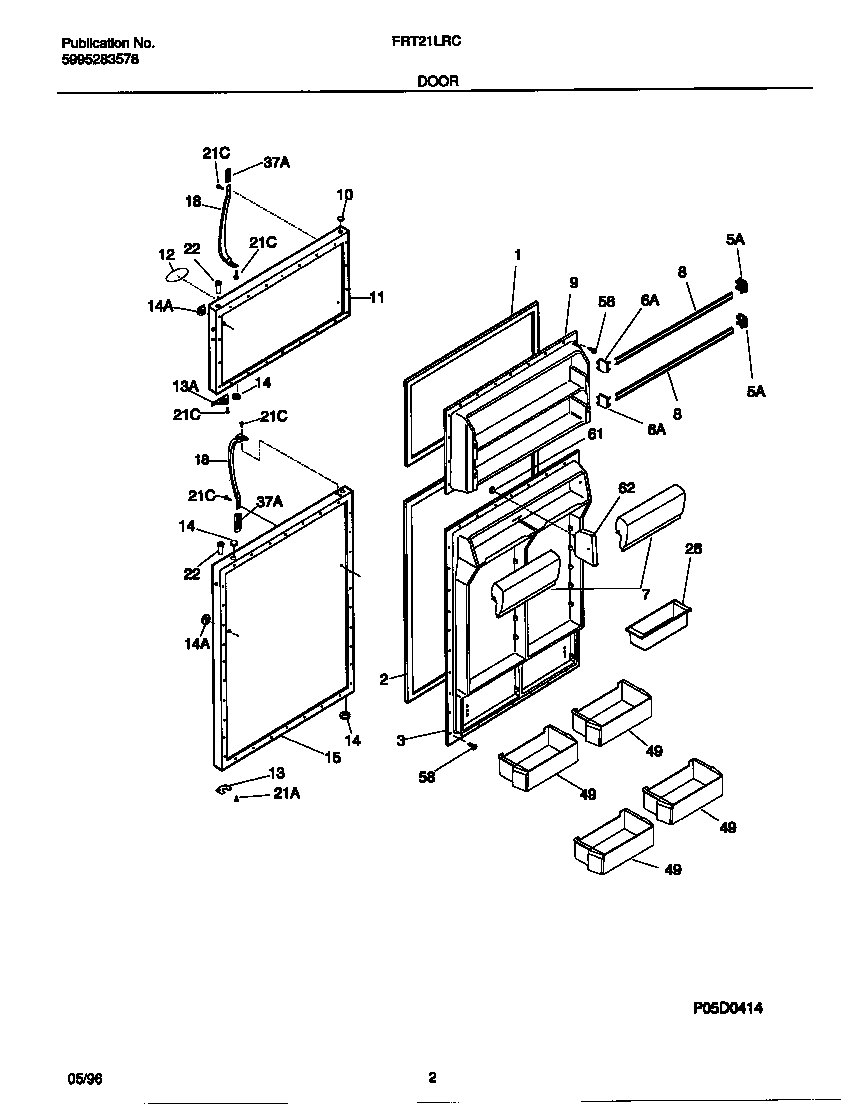

FRT21LRCD2 02 – DOOR

FRT21LRCD2 02 – DOOR

Written by

in

FRT21LRCD2 02 – DOOR

Products

PositionProduct
*74200INSULATION
*74201TOUCH, UP PAINT, ALMOND (NI)
1WCI 215608903
2WCI 215732403
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7BWCI 5303001380
7AWCI 5303308337
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917609
12LABEL-NAMEPLATE,ALMOND
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218364002
12WCI 218156515
13WCI 218249002
13DOOR STOP, REFR SECTION
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917624
18WCI 218363402
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215940700
37WCI 215867059
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
