FRT21LRCD3 02 – DOOR

FRT21LRCD3 02 – DOOR

Written by

in

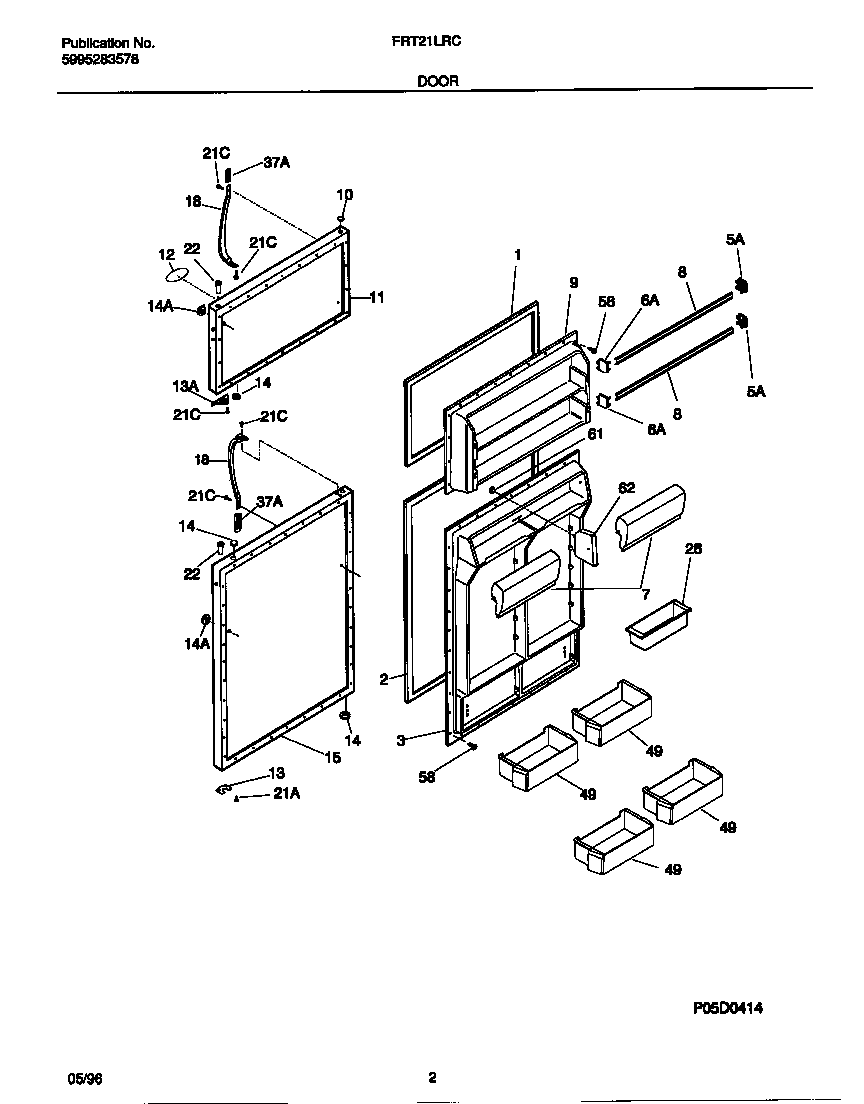

FRT21LRCD3 02 – DOOR

Products

PositionProduct
*74200INSULATION
*74201TOUCH, UP PAINT, ALMOND (NI)
1WCI 215608903
2WCI 215732403
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7AWCI 5303308337
7BWCI 5303001380
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218156515
12WCI 218364002
12LABEL-NAMEPLATE,ALMOND
13WCI 218249002
13DOOR STOP, REFR SECTION
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215867059
37WCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
