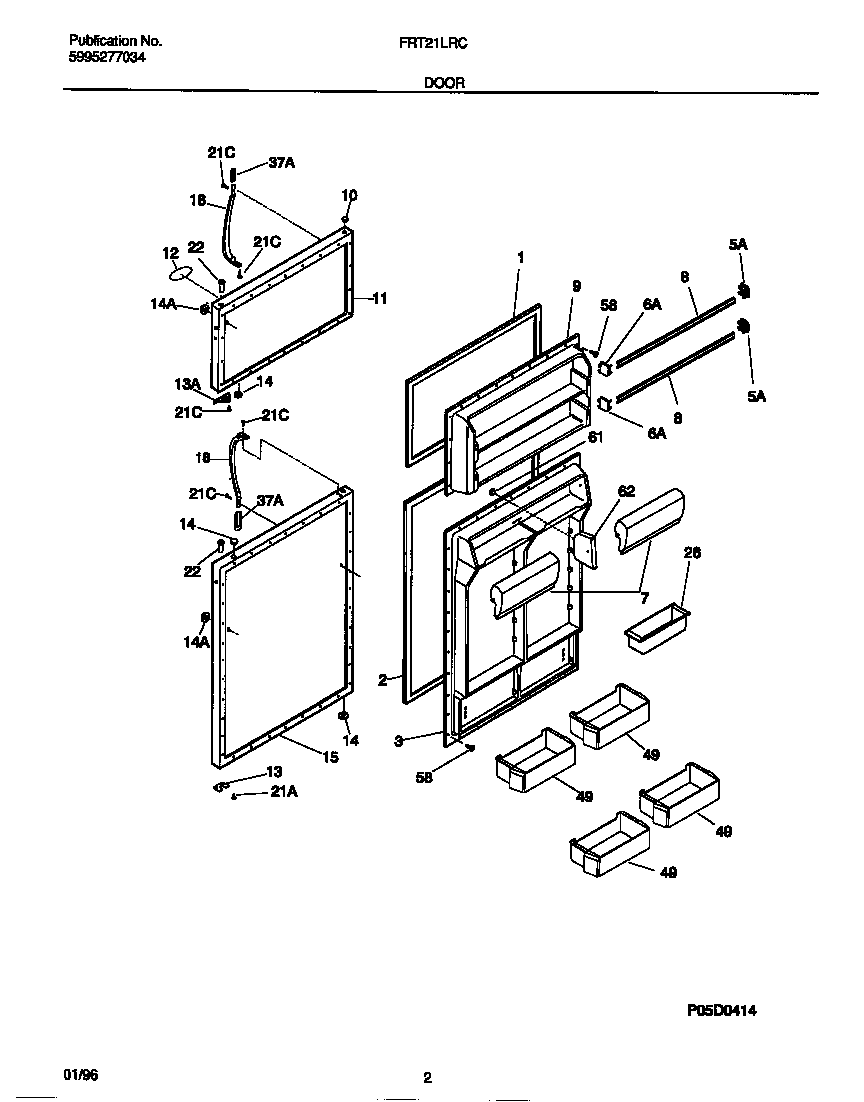

FRT21LRCW1 02 – DOOR

FRT21LRCW1 02 – DOOR

Written by

in

FRT21LRCW1 02 – DOOR

Products

PositionProduct
*79160INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308337
8WCI 215474041
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917608
12WCI 218156514
12LABEL-NAMEPLATE,WHITE
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218364001
13DOOR STOP, REFR SECTION
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917610
18WCI 218363401
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 3204522
37WCI 215867025
37WCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
