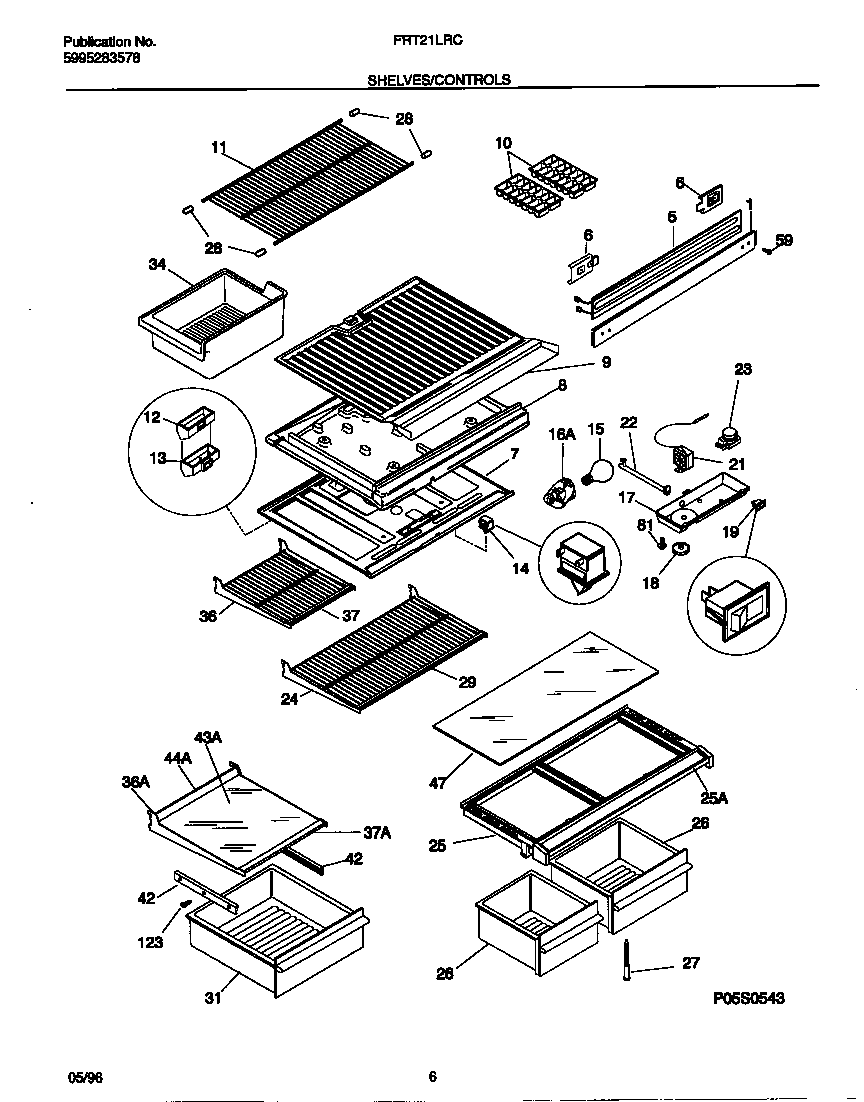

FRT21LRCW2 04 – SHELVES/CONTROLSadmin2025-04-26T08:47:23+00:00FRT21LRCW2 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| 1 | WCI 218651900 |
| 5 | WCI 218271402 |
| 6 | WCI 218279800 |
| 7A | WCI 3019038 |
| 7B | WCI 5303001380 |
| 8A | WCI 5303019039 |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 8C | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11A | WCI 5303288243 |
| 11B | SPACER, FRZR SHELF (NOT ILLUSTRATED) |
| 12 | WCI 218630800 |
| 13 | WCI 218631001 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 218906802 Frigidaire Light Lamp Socket |
| 17B | NUT, ANCHOR (NI) |
| 17A | WCI 5303307349 |
| 18 | WCI 5303311079 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21B | WCI 5303001260 |
| 21A | WCI 5303303674 |
| 22 | WCI 5303319683 |
| 22 | TUBE |
| 23A | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23B | 5304455649 Frigidaire Refrigerator Screw |
| 24 | WCI 5303273155 |
| 25 | WCI 5303308338 |
| 25 | WCI 5303206538 |
| 26B | WCI 5303308333 |
| 26A | WCI 5303308331 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | WCI 5303295990 |
| 31 | WCI 5303308335 |
| 34 | 5303212918 Frigidaire Refrigerator Cont |
| 36 | FRAMER, HALF SHELF, CATILEVER |
| 36 | SHELF, CANTILEVER, HALF WIDETH, WIRE |
| 37 | WCI 5303293824 |
| 37 | TRIM-GLASS SHELF, 12.59``, FRONT |
| 42B | HANGER-PAN/BASKET, RH |
| 42A | HANGER-PAN/BASKET, LH |
| 43 | WCI 218390522 |
| 44 | WCI 215919810 |
| 47 | WCI 218390523 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 123 | 215005101 Frigidaire Refrigerator Screw |
