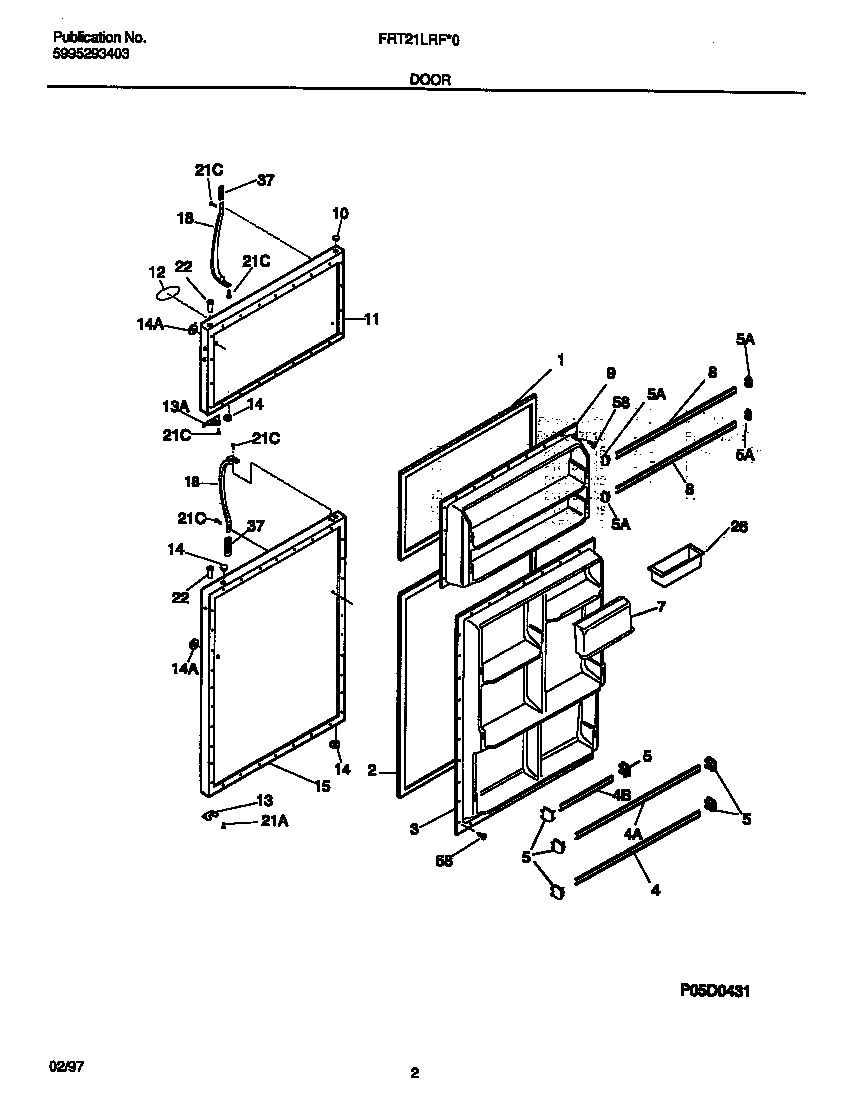

FRT21LRFD0 02 – DOOR

Products

PositionProduct
*79440INSULATION
1WCI 215608903
2WCI 215732403
3WCI 215393201
4215516220 Frigidaire Refrigerator Door Rack
5WCI 218758701
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303310094
9WCI 215530301
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218364002
12WCI 218156515
12LABEL-NAMEPLATE,ALMOND
13WCI 218249002
13DOOR STOP, REFR SECTION
14WCI 218074002
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218668002
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26WCI 3204522
37WCI 215940700
37WCI 215867059
58216858001 Frigidaire Refrigerator Screw
