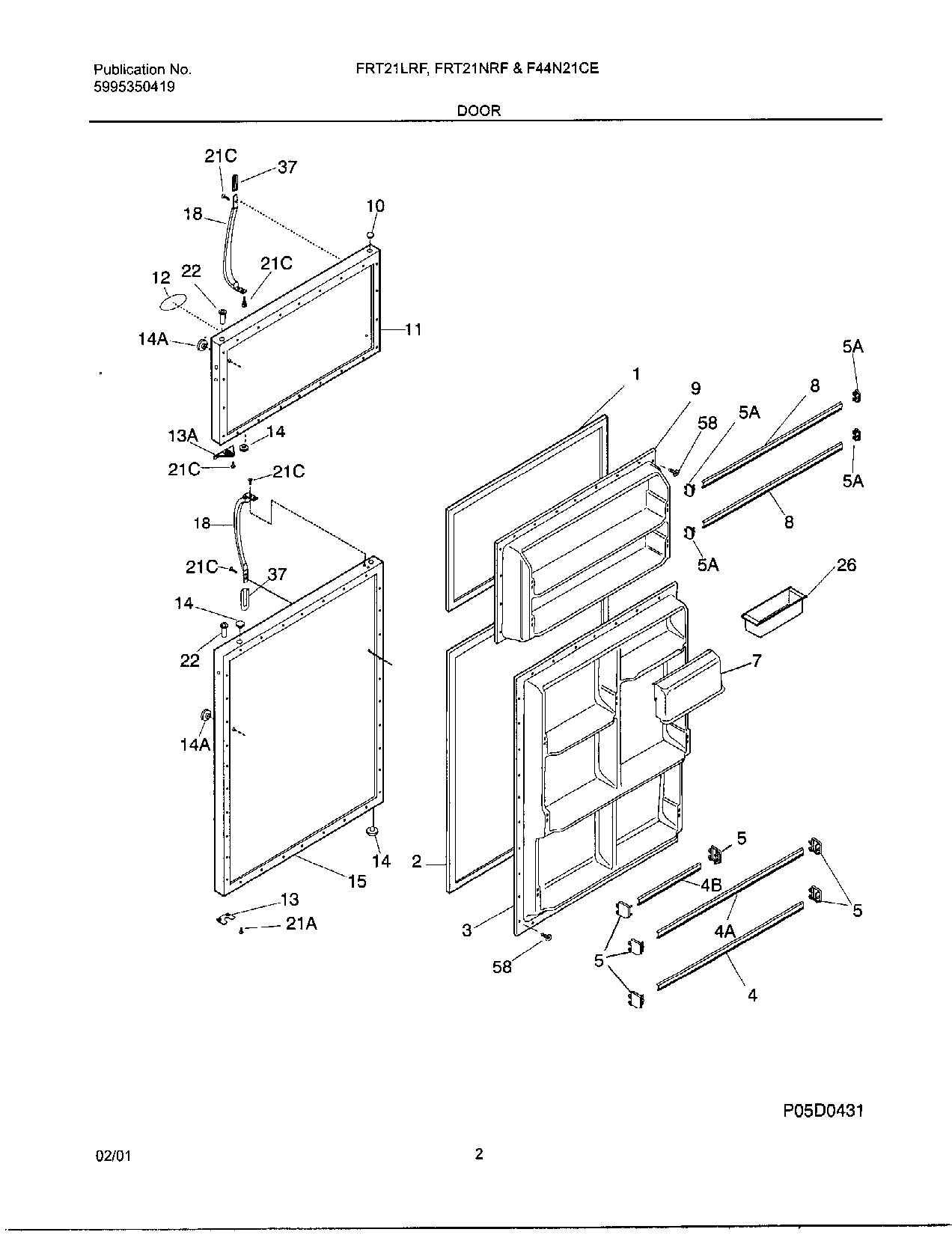

FRT21LRFW2 02 – DOOR

FRT21LRFW2 02 – DOOR

Written by

in

FRT21LRFW2 02 – DOOR

Products

PositionProduct
NIWCI 215008616
NIWCI 215940700
NILABEL-NAMEPLATE,WHITE
NIWCI 218676001
NIWCI 215008617
NIMAGNET-NAMEPLATE (NOT ILLUSTRATED)
NIINSULATION
NILABEL-NAMEPLATE,ALMOND
NIWCI 215782300
1WCI 215608903
1WCI 215608913
2WCI 218730610
2WCI 218730609
3WCI 215393201
4B215516220 Frigidaire Refrigerator Door Rack
5A218758602 Frigidaire Refrigerator Door Rack Support
5WCI 218758701
7WCI 5303310094
9WCI 215530301
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
11PANEL-FRZR DOOR, WHITE, W/INSULATION
12WCI 218364001
12WCI 218364002
13DOOR STOP, REFR SECTION
13AWCI 218249002
13AWCI 218249001
14A240494001 Frigidaire Refrigerator Plug Button
14AWCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218668002
18218668001 Frigidaire Refrigerator P-1 Handle
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215867059
37WCI 215867058
58Screw,No.10 pan hd ,8-18 x .5
