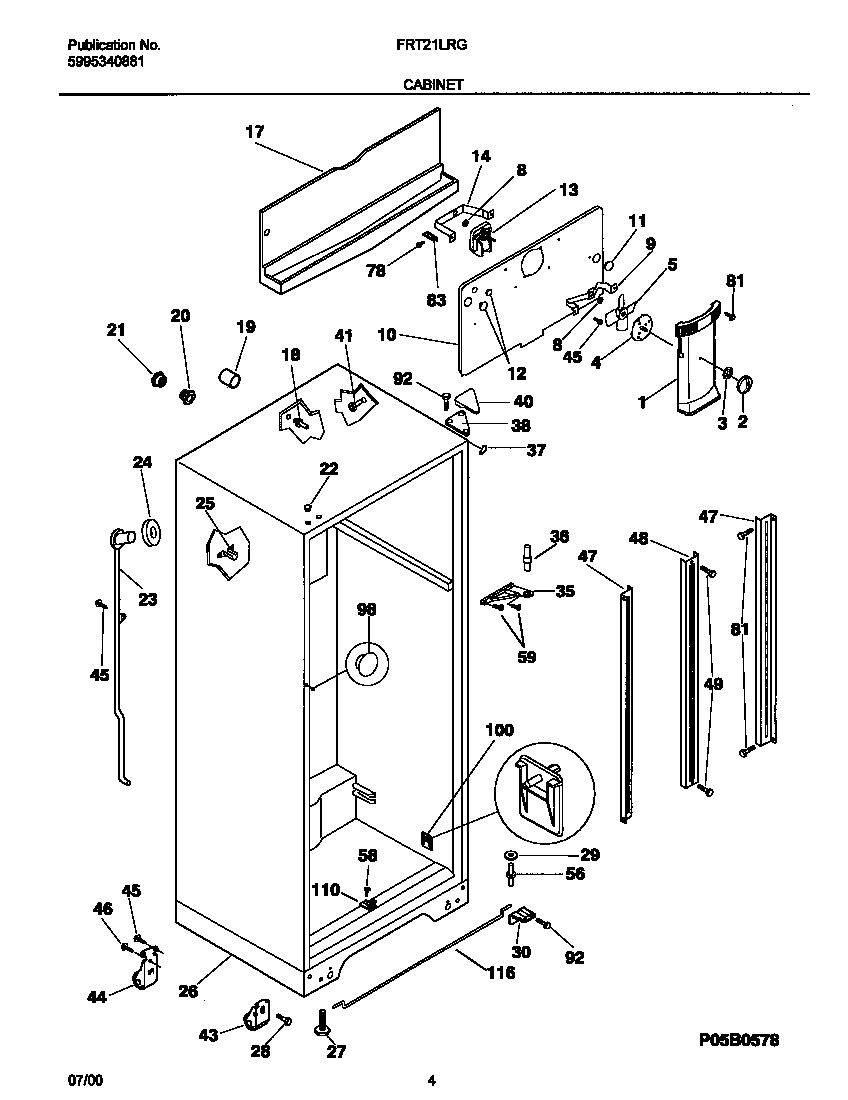

FRT21LRGD6 03 – CABINET

FRT21LRGD6 03 – CABINET

Written by

in

FRT21LRGD6 03 – CABINET

Products

PositionProduct
*68014TOUCH, UP PAINT, ALMOND (NI)
*68016WCI 218905701
*68010WCI 218605300
*68009WCI 218605200
*68008WASHER,NYLON ,0.245 ID W/NIBS
*680115304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*680125304455650 Frigidaire Refrigerator Screw
*68015PLUG, BUTTON, CABINET LINER (NI)
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218802800
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
13WCI 218878801
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605102
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 218666700
30WCI 218220203
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
110WCI 215363501
116WCI 215426703
