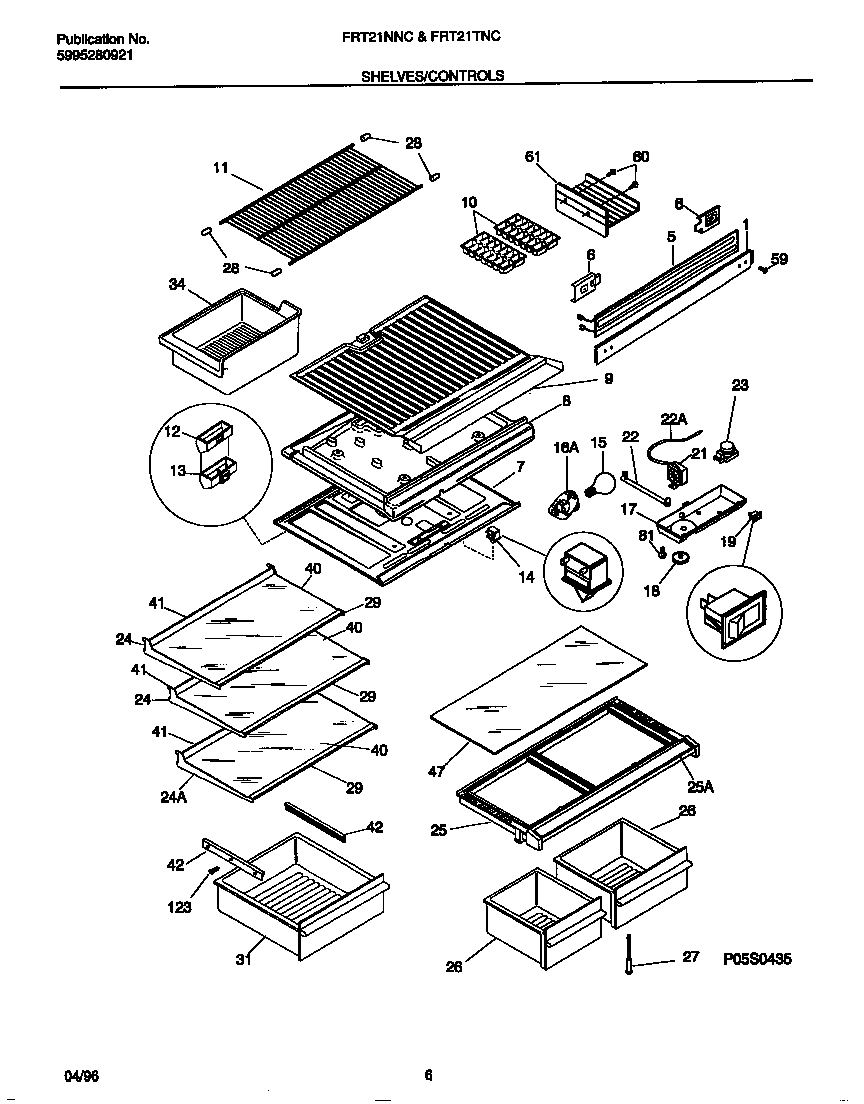

FRT21NNCD3 04 – SHELVES/CONTROLS

FRT21NNCD3 04 – SHELVES/CONTROLS

Written by

in

FRT21NNCD3 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218651901
5WCI 218271402
6WCI 218279800
7BWCI 5303001380
7AWCI 3019038
8AWCI 5303019039
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8C3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303288243
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12AWCI 218630800
12B5303001449 Frigidaire Refrigerator Seal
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303303674
21BWCI 5303001260
22TUBE
22WCI 3018891
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919118
24WCI 215919123
25WCI 5303206538
25WCI 5303308338
26BWCI 5303308332
26AWCI 5303308330
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919420
31WCI 5303308334
345303212918 Frigidaire Refrigerator Cont
40WCI 218390527
41WCI 215919805
42AHANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
47WCI 218390523
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
