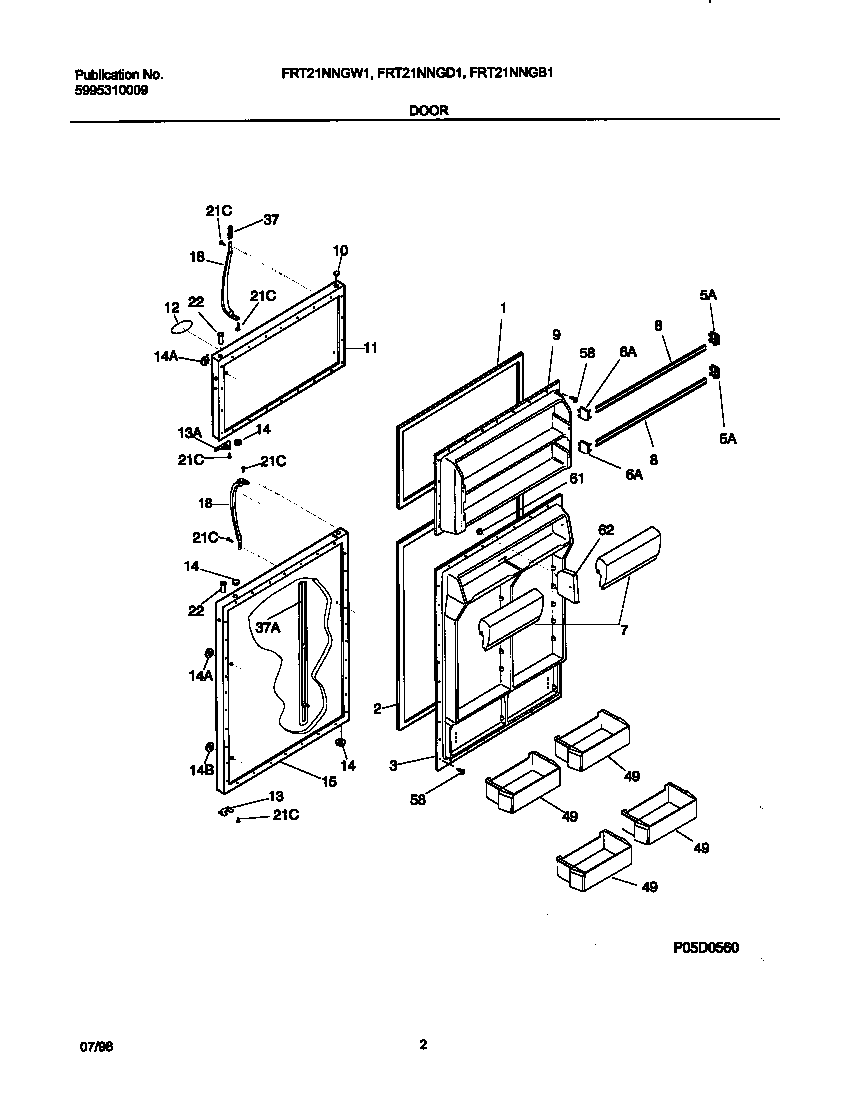

FRT21NNGD1 02 – DOOR

FRT21NNGD1 02 – DOOR

Written by

in

FRT21NNGD1 02 – DOOR

Products

PositionProduct
*77001INSULATION
*77000MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608903
2WCI 218730610
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917827
12NAMEPLATE ASSY, ALMOND, WITH MAGNET
13WCI 218249002
13DOOR STOP, REFR SECTION
14CWCI 218074003
14BWCI 218074002
14AWCI 218074001
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14WCI 215352211
15WCI 5303917829
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37CWCI 218676001
37AWCI 215782300
37BWCI 215940700
37WCI 215867071
37WCI 215867059
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
