FRT21NNGW1 02 – DOOR

FRT21NNGW1 02 – DOOR

Written by

in

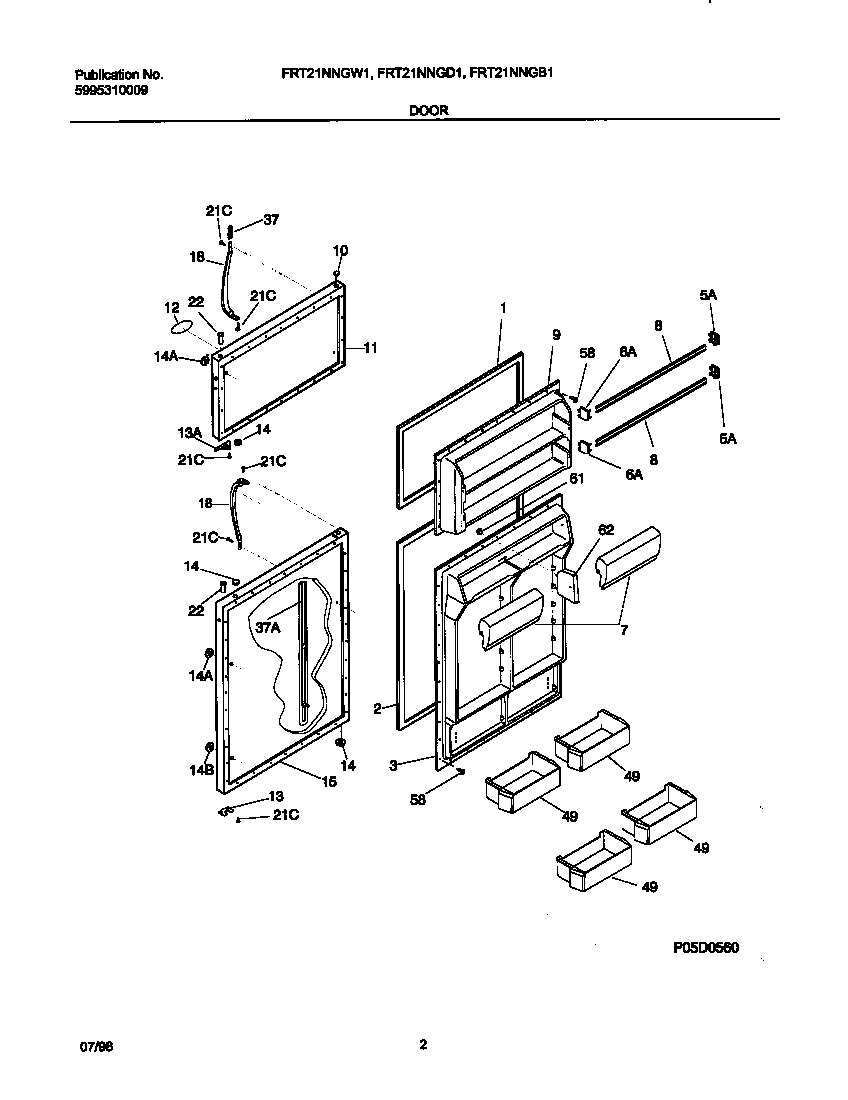

FRT21NNGW1 02 – DOOR

Products

PositionProduct
*77001INSULATION
*77000MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608913
2WCI 218730609
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917826
12NAMEPLATE ASSY, WHITE, WITH MAGNET
13DOOR STOP, REFR SECTION
13WCI 218249001
14BWCI 218074002
14AWCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
14CWCI 218074003
15WCI 5303917828
18218668001 Frigidaire Refrigerator P-1 Handle
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 215867058
37CWCI 218676001
37AWCI 215782300
37WCI 215867070
37BWCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
