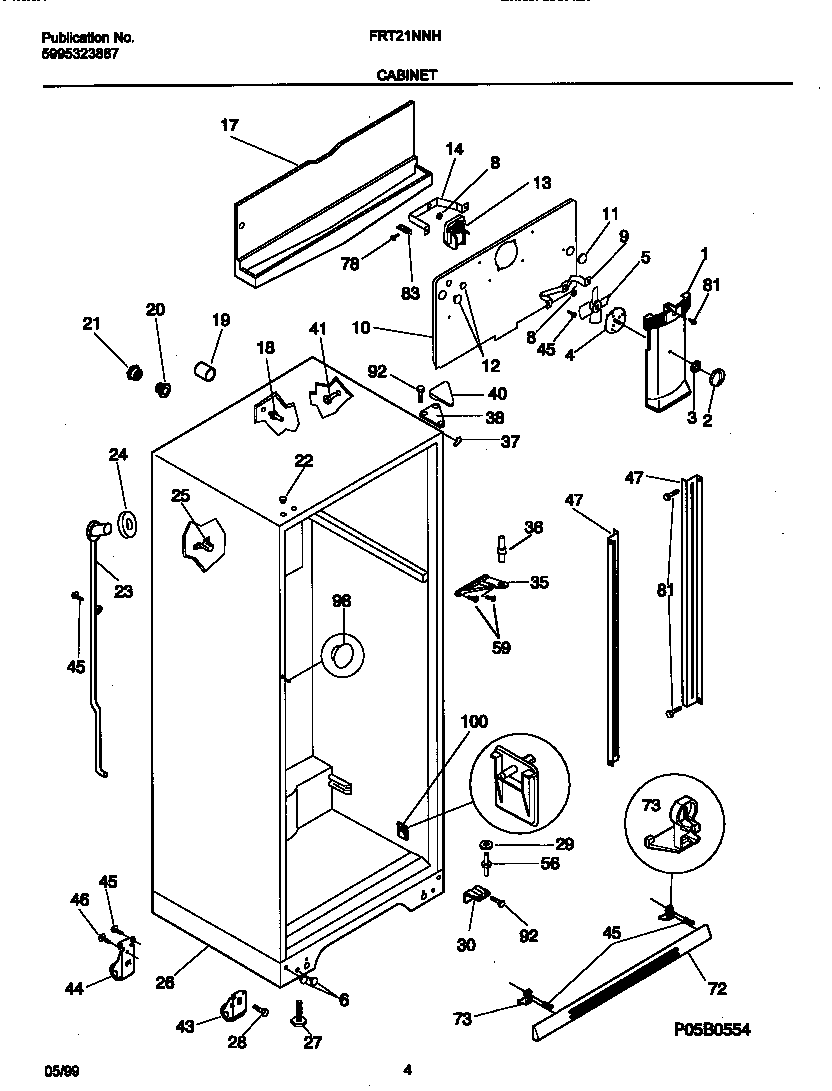

FRT21NNHB1 03 – CABINET

FRT21NNHB1 03 – CABINET

Written by

in

FRT21NNHB1 03 – CABINET

Products

PositionProduct
*189675303321321 Frigidaire Refrigerator Black Touch-Up Paint
*18965WCI 5308009790
*18971PLUG, BUTTON, CABINET LINER (NI)
*189645304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*18961WASHER,NYLON ,0.245 ID W/NIBS
*18962WCI 218605200
*18963WCI 218605300
*18966WCI 218905701
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218802800
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
13WCI 218878801
14WCI 5303322992
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774918 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605103
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 218666700
30WCI 218220202
35WCI 218220103
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321083
38WCI 3206100
40WCI 5304400454
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218916406
73WCI 218896704
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
