FRT21NRGB2 02 – DOOR

FRT21NRGB2 02 – DOOR

Written by

in

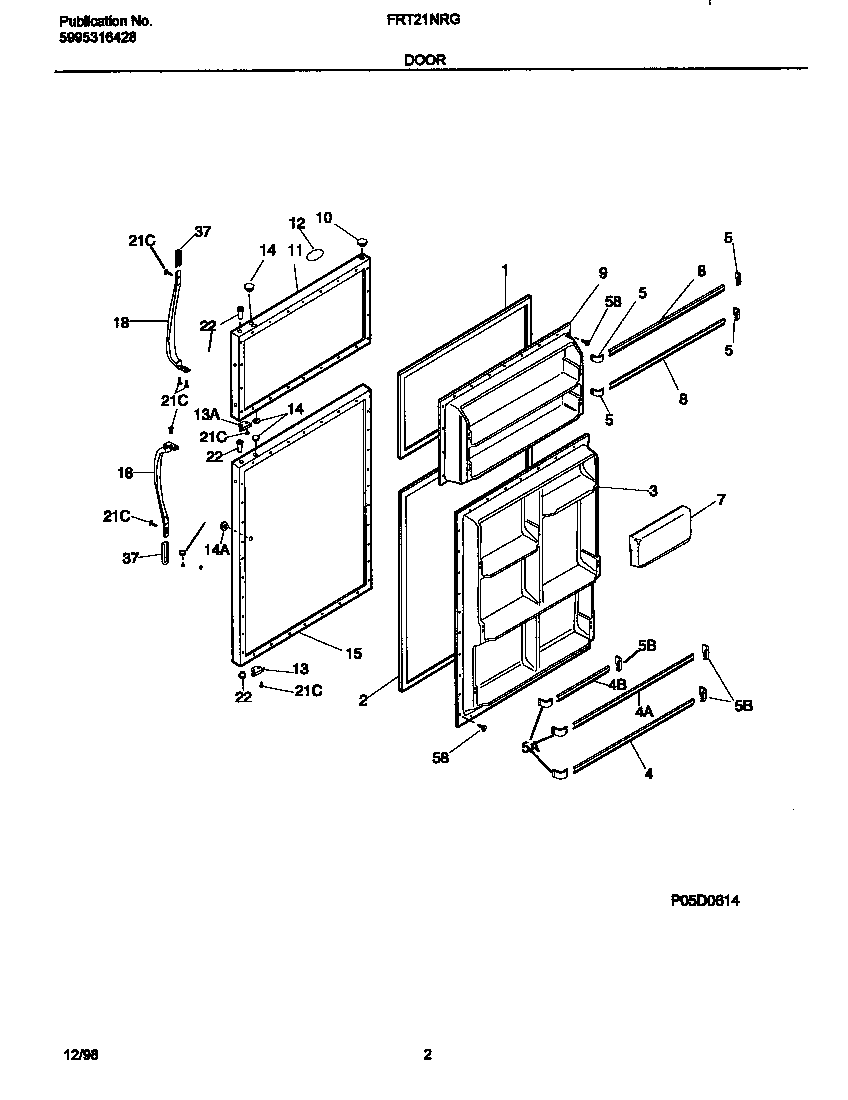

FRT21NRGB2 02 – DOOR

Products

PositionProduct
*00520WCI 215008609
*00527WCI 218676001
*00528WCI 215940700
*00524WCI 218364003
*00529WCI 218807701
*00523MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*00530INSULATION
1WCI 215608923
2WCI 218730622
3WCI 215393201
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5218809701 Frigidaire Refrigerator Door Rack Support
5218809801 Frigidaire Refrigerator Support-Door Rack
7WCI 5303308341
9WCI 215530301
10PLUG-BUTTON, BLACK, HINGE BRG HOLE
11WCI 5303917980
12WCI 218156532
13WCI 218249003
13WCI 218800300
14240494003 Frigidaire Refrigerator Plug-Button
15WCI 5303917979
18218668003 Frigidaire Refrigerator Door Handle
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37TRIM-HANDLE, 4.97“, BLACK, W/BAND & LOCK OPTIONAL ACCESS
58Screw,No.10 pan hd ,8-18 x .5
