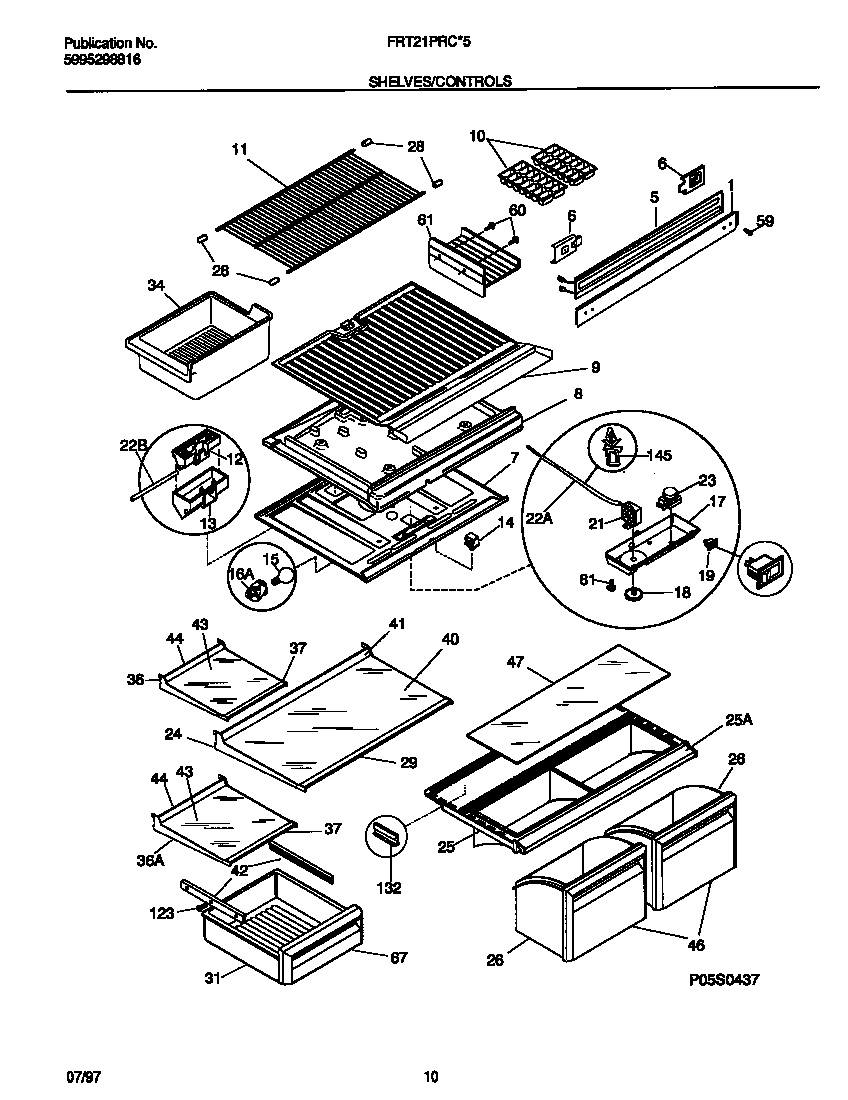

FRT21PRCB5 04 – SHELVES/CONTROLS

FRT21PRCB5 04 – SHELVES/CONTROLS

Written by

in

FRT21PRCB5 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218651902
5WCI 218781002
6WCI 218279800
7AWCI 218738800
7BWCI 5303001380
8AWCI 218781400
8B3205266 Frigidaire Refrigerator Edge Protector
8CHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11AWCI 5303288243
12WCI 218730000
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303321455
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21ACOLD CONTROL
22TUBE
22WCI 218731104
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919117
25WCI 215363203
25WCI 5303310151
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 215919405
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36WCI 215919115
36WCI 215919121
37WCI 215919411
40WCI 218390524
41WCI 215919805
42B218971302 Frigidaire Refrigerator Rh Rail
42A218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43WCI 218390525
44TRIM-GLASS SHELF,13.07“ ,REAR
46FRONT-CRISPER PAN,(2)
47WCI 218390526
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 215357805
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
132WCI 215426600
145WCI 218660800
