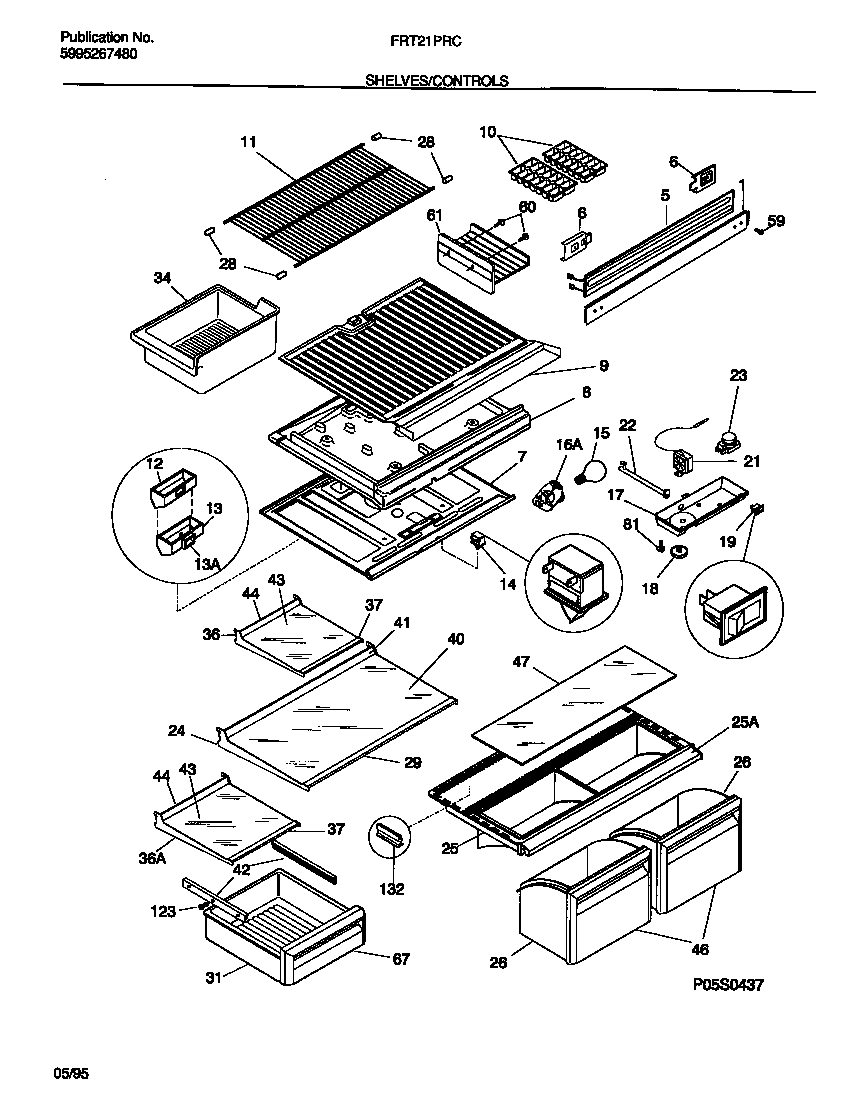

FRT21PRCD0 04 – SHELVES/CONTROLS

FRT21PRCD0 04 – SHELVES/CONTROLS

Written by

in

FRT21PRCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 3019038
7BWCI 5303001380
8C3205266 Frigidaire Refrigerator Edge Protector
8AWCI 5303019039
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11AWCI 5303288243
12B5303001449 Frigidaire Refrigerator Seal
12ADEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303018894
22WCI 3018891
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
24WCI 215919117
25WCI 215363203
25AWCI 5303310151
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 215919420
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36AWCI 215919121
36WCI 215919115
37TRIM-GLASS SHELF, 13.07“, FRONT
40WCI 218390524
41WCI 215919805
42B218971302 Frigidaire Refrigerator Rh Rail
42A218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43WCI 218390525
44TRIM-GLASS SHELF,13.07“ ,REAR
46FRONT-CRISPER PAN,(2)
47WCI 218390526
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 215357805
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
132WCI 215426600
