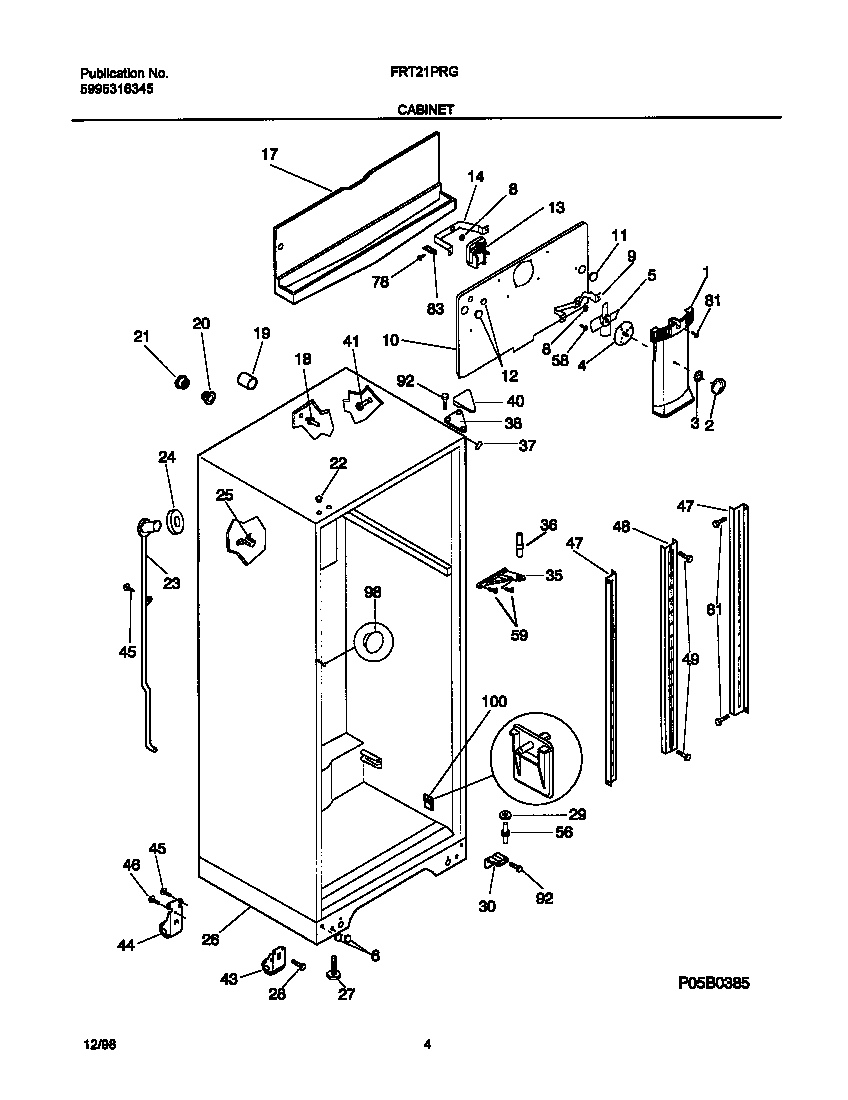

FRT21PRGD3 03 – CABINET

FRT21PRGD3 03 – CABINET

Written by

in

FRT21PRGD3 03 – CABINET

Products

PositionProduct
*271765304455852 Frigidaire Refrigerator Screw
*27167SCREW,HEX HD SER WSHR ,8-18 X 0.375
*27172WCI 218605300
*27180TOUCH, UP PAINT, ALMOND (NI)
*27175WCI 5308009790
*27170WCI 5308011326
*27181PLUG, BUTTON, CABINET LINER (NI)
*27168NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*27173TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*27169WCI 5303001361
*27171WCI 218605200
*27178WCI 218601201
*271745304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*271775304455650 Frigidaire Refrigerator Screw
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218802800
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
13WCI 218878801
14WCI 5303322992
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605102
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29AWCI 218666700
29BWASHER,NYLON ,0.245 ID W/NIBS
30WCI 218220200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
785308000039 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
